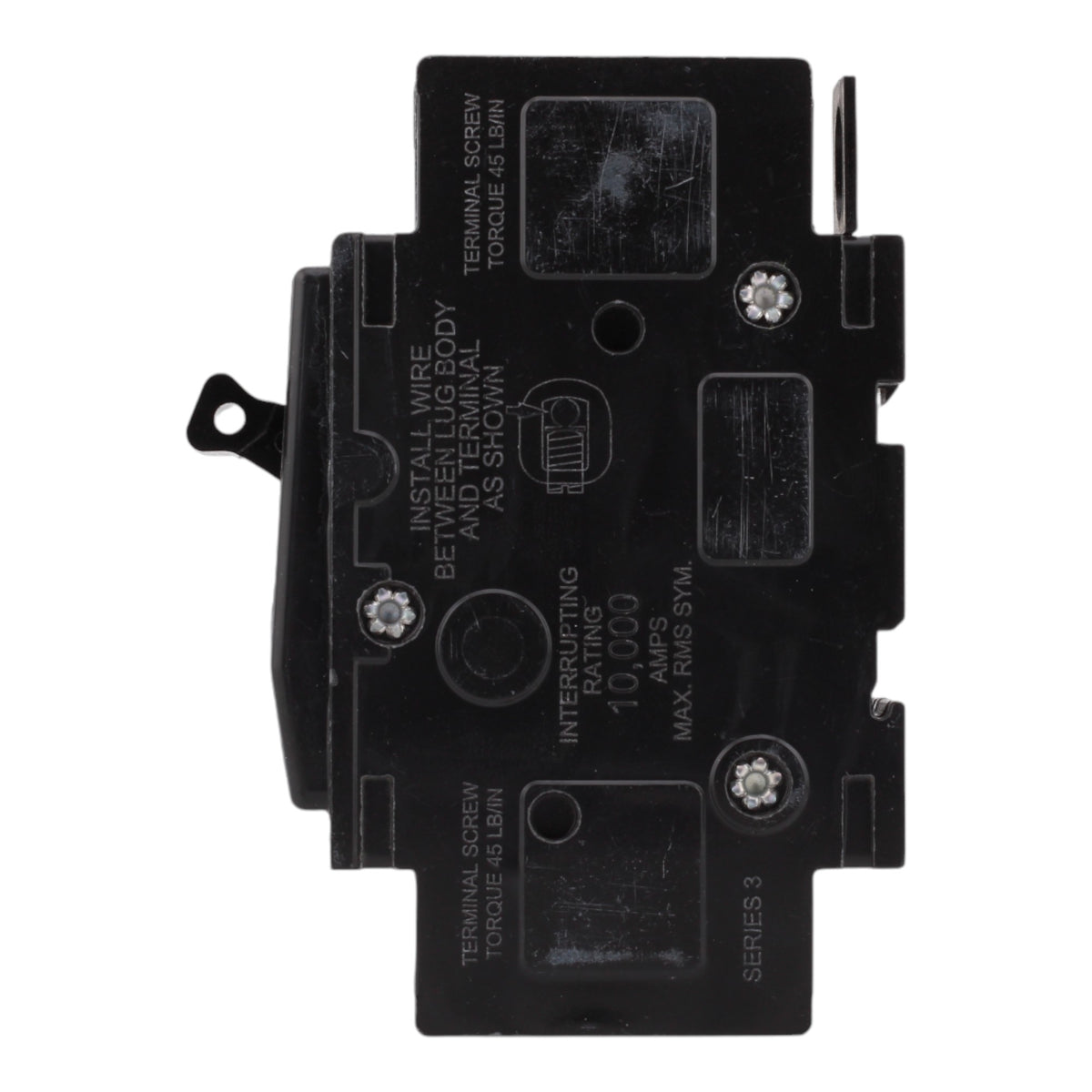

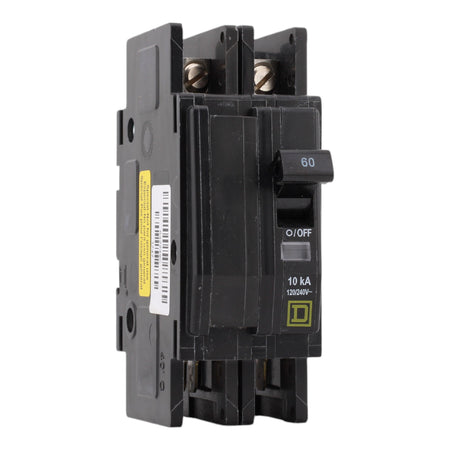

Square D QOUQ260RP 60A 2-Pole 120/240V 10kA QOU Breaker with Four-Point Quick-Connect Terminals - product image 1
Square D QOUQ260RP 60A 2-Pole 120/240V 10kA QOU Breaker with Four-Point Quick-Connect Terminals - product image 2
Square D QOUQ260RP 60A 2-Pole 120/240V 10kA QOU Breaker with Four-Point Quick-Connect Terminals - product image 3
Square D QOUQ260RP 60A 2-Pole 120/240V 10kA QOU Breaker with Four-Point Quick-Connect Terminals - product image 4
Square D QOUQ260RP 60A 2-Pole 120/240V 10kA QOU Breaker with Four-Point Quick-Connect Terminals - product image 5
Square D QOUQ260RP 60A 2-Pole 120/240V 10kA QOU Breaker with Four-Point Quick-Connect Terminals - product image 6
Square D QOUQ260RP 60A 2-Pole 120/240V 10kA QOU Breaker with Four-Point Quick-Connect Terminals - product image 7
Square D QOUQ260RP 60A 2-Pole 120/240V 10kA QOU Breaker with Four-Point Quick-Connect Terminals - product image 8
Square D QOUQ260RP 60A 2-Pole 120/240V 10kA QOU Breaker with Four-Point Quick-Connect Terminals - product image 1
Square D QOUQ260RP 60A 2-Pole 120/240V 10kA QOU Breaker with Four-Point Quick-Connect Terminals - product image 2
Square D QOUQ260RP 60A 2-Pole 120/240V 10kA QOU Breaker with Four-Point Quick-Connect Terminals - product image 3
Square D QOUQ260RP 60A 2-Pole 120/240V 10kA QOU Breaker with Four-Point Quick-Connect Terminals - product image 4
Square D QOUQ260RP 60A 2-Pole 120/240V 10kA QOU Breaker with Four-Point Quick-Connect Terminals - product image 5
Square D QOUQ260RP 60A 2-Pole 120/240V 10kA QOU Breaker with Four-Point Quick-Connect Terminals - product image 6
Square D QOUQ260RP 60A 2-Pole 120/240V 10kA QOU Breaker with Four-Point Quick-Connect Terminals - product image 7
Square D QOUQ260RP 60A 2-Pole 120/240V 10kA QOU Breaker with Four-Point Quick-Connect Terminals - product image 8

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D QOUQ260RP 60A 2-Pole 120/240V 10kA QOU Breaker with Four-Point Quick-Connect Terminals

Out of stock
SKU: QOUQ260RP NEW
(0)
$36.00
-25% $48.00 $36.00
Condition
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa

Overview

The Square D QOUQ260RP is a 60 A, two-pole QOU unit-mount circuit breaker with four-point quick-connect terminals and returnable packaging. It provides common-trip thermal-magnetic protection at 120/240 VAC with a 10 kA interrupting rating.

Key Features

  • Protection: Instantaneous and inverse-time thermal-magnetic operation protects against short circuits and sustained overloads.
  • Installation: QOU unit mounting with factory four-point quick-connect terminals; the 60 A breaker accepts 14–2 AWG conductors.
  • Compatibility: For manufacturer-listed OEM, unit-mount, flush, surface, or compatible DIN-mount QOU applications; the RP suffix denotes returnable packaging.
  • Performance: 60 A, two-pole, 120/240 VAC operation; UL Listed, CSA certified, and HACR rated.

Specifications

  • Manufacturer / model: Square D QOUQ260RP
  • Series: QOU
  • Current / poles / phase: 60 A, 2 poles, single phase
  • Voltage / interrupting rating: 120/240 VAC, 10 kA
  • Protection: Common-trip thermal magnetic
  • Mounting / terminals: Unit mount; four-point quick-connect terminals
  • Conductor range: 14–2 AWG copper or aluminum
  • Temperature rating: 104°F (40°C)
  • Certifications: UL Listed; CSA certified; HACR rated

Common Applications

  • OEM equipment and control assemblies designed for QOU unit-mount breakers.
  • 60 A two-pole equipment circuits where four-point quick-connect termination and QOUQ260RP are specified.
  • Exact-model replacement after confirming equipment listing, circuit voltage, conductor size, and applicable electrical-code requirements.

Free shipping on eligible orders over $90. Our shipping cutoff is 3 PM, Monday–Friday. Available shipping services and delivery estimates are shown at checkout.

See our shipping policy for eligibility and exclusions. Orders are delivered; our warehouse is closed to the public.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.

Product Specifications

  • Brand Square D
  • Series QOU
  • Model QOUQ260RP
  • Breaker Type Thermal Magnetic and Regular Breaker
  • Frame Type NA
  • Phase 1 Phase
  • Pole 2 Pole
  • Voltage 120/240V
  • Amp 60
  • AIC Interrupting Rating 10 kA
  • Terminal Connection Four-Point Quick-Connect
  • Minimum Wire Gauge 14 AWG
  • Maximum Wire Gauge 2 AWG
  • Mounting Type Unit Mount
  • Temperature Rating 104°F (40°C)
  • Certifications UL Listed, CSA Certified, and HACR Rated
