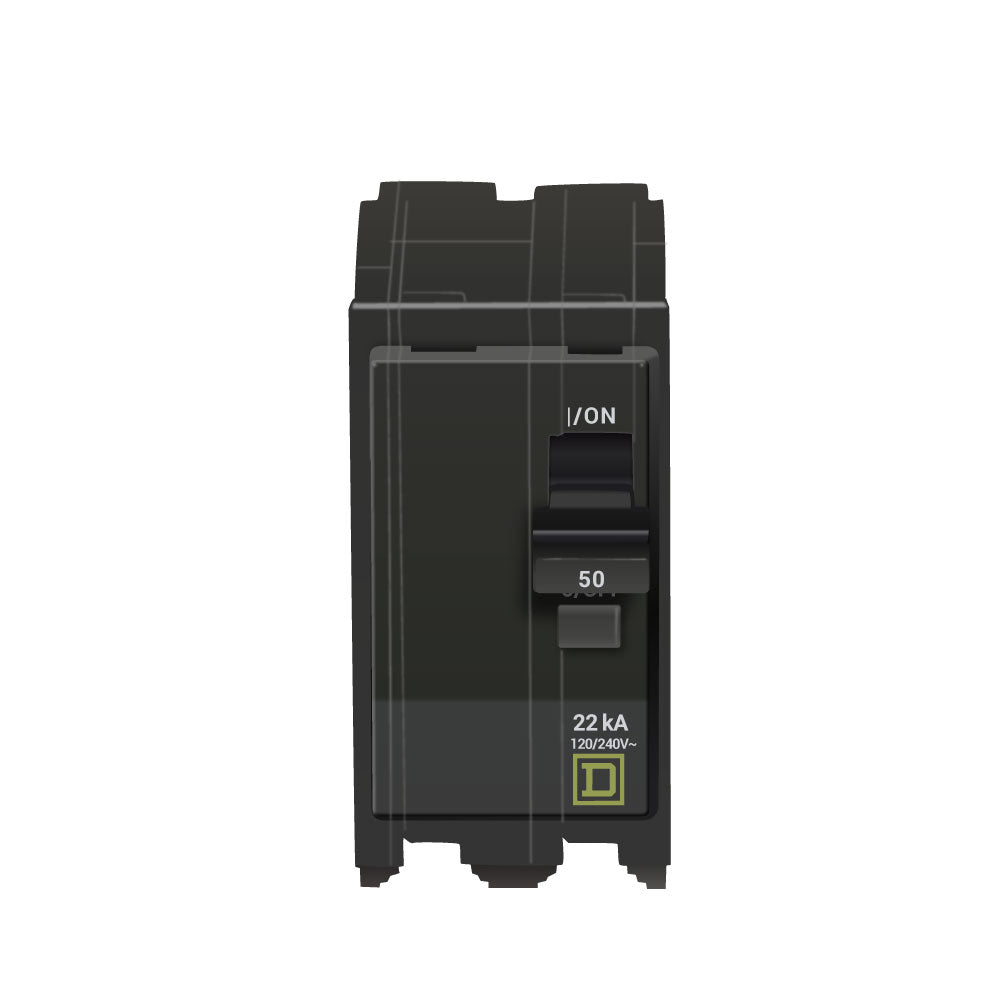

Square D QO250VH 50A 2-pole 120/240V 22kA plug-in circuit breaker
Square D QO250VH 50A 2-pole 120/240V 22kA plug-in circuit breaker

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D QO250VH 50A 2-Pole 120/240V 22kA Plug-In Circuit Breaker

Out of stock
SKU: QO250VH NEW
(0)
$91.99
Condition
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa

Overview

The Square D QO250VH is a 50 amp, 2-pole QO miniature circuit breaker for compatible Square D QO load centers and panelboards. It uses plug-in mounting, thermal-magnetic overcurrent protection, and a common trip for 120/240V AC circuits.

Key Features

  • 50A, 2-pole common-trip configuration
  • 22kA interrupting rating at 120/240V AC
  • Plug-in mounting for compatible Square D QO equipment
  • Visi-Trip indicator helps identify a tripped circuit
  • HACR rated with box-lug terminals

Specifications

Manufacturer Square D by Schneider Electric
Catalog Number QO250VH
Current Rating 50 A
Poles 2
Voltage Rating 120/240 V AC
Interrupt Rating 22 kA
Mounting Plug-in
Protection Thermal-magnetic
Terminal Box lugs
Wire Range 8–2 AWG copper or aluminum
Ambient Rating 104°F (40°C)
Certifications UL Listed; CSA; HACR rated
UPC 785901054962

Common Applications

Designed for branch-circuit protection in compatible Square D QO residential and light-commercial distribution equipment where a 50A, 2-pole, 120/240V AC breaker with a 22kA interrupting rating is specified. Confirm panel compatibility and application requirements before installation.

Free shipping on eligible orders over $90. Our shipping cutoff is 3 PM, Monday–Friday. Available shipping services and delivery estimates are shown at checkout.

See our shipping policy for eligibility and exclusions. Orders are delivered; our warehouse is closed to the public.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.

Product Specifications

  • Brand Square D
  • Series QO
  • Model QO250VH
  • Breaker Type Thermal Magnetic and Regular Breaker
  • Frame Type NA
  • Phase 1 Phase
  • Pole 2 Pole
  • Voltage 120/240V
  • Amp 50
  • AIC Interrupting Rating 22 kA
  • Terminal Connection Box Lug
  • Minimum Wire Gauge 8 AWG
  • Maximum Wire Gauge 2 AWG
  • Mounting Type Plug-ON,IN
  • Temperature Rating 104°F (40°C)
  • Certifications UL Listed, CSA Certified, and HACR Rated
