Square D

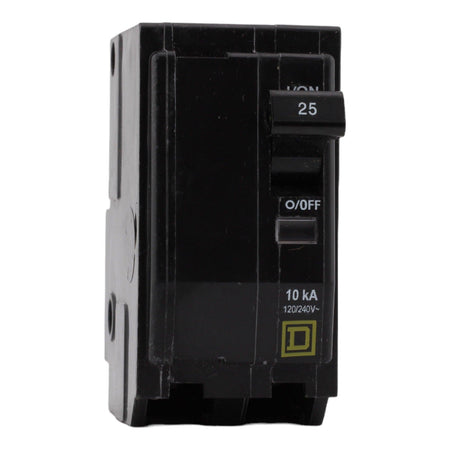

Square D QO225 25 Amps 120/240 Volts Double Pole Thermal Magnetic Circuit Breaker for QO Load Centers

In stock
SKU: QO225 NEW
(0)
$32.14
Condition
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa

Overview

The Square D QO225 is a 25 A, two-pole standard thermal-magnetic circuit breaker for approved QO equipment. It uses plug-in mounting, is rated 120/240 VAC, and provides a 10 kA interrupting rating with common operation of both poles.

Key Features

  • Protection: Thermal-magnetic operation provides time-delayed overload and instantaneous short-circuit protection.
  • Trip indication: QO Visi-Trip indication makes a tripped breaker easier to identify in a populated panel.
  • Installation: The two-space plug-in design uses pressure-plate terminals and accepts #14-8 AWG copper or aluminum conductors.
  • Compliance: UL Listed under file E84967, CSA certified under master contract 153555, and HACR rated.

Specifications

  • Catalog number: QO225
  • Current rating: 25 A
  • Poles: 2
  • Voltage rating: 120/240 VAC
  • Interrupting rating: 10 kA
  • Breaker type: Standard thermal magnetic
  • Mounting: Plug-in; two panel spaces
  • Terminal connection: Pressure plate
  • Wire range: #14-8 AWG copper or aluminum
  • Certifications: UL Listed; CSA certified; HACR rated

Common Applications

  • 25 A two-pole branch-circuit protection in compatible Square D QO load centers.
  • Approved NQ or NQOD panelboards, OEM mounting bases, and Speed-D switchboard distribution applications that specify a QO plug-in breaker.
  • Replacement of an exact QO225 where 120/240 VAC, 10 kA interrupting capacity, and two-pole common operation are required.

Free shipping on eligible orders over $90. Our shipping cutoff is 3 PM, Monday–Friday. Available shipping services and delivery estimates are shown at checkout.

See our shipping policy for eligibility and exclusions. Orders are delivered; our warehouse is closed to the public.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.

Product Specifications

  • Brand Square D
  • Series QO
  • Model QO225
  • Breaker Type Thermal Magnetic and Regular Breaker
  • Frame Type NA
  • Phase 1 Phase
  • Pole 2 Pole
  • Voltage 120/240V
  • Amp 25
  • AIC Interrupting Rating 10 kA
  • Terminal Connection Pressure Plate
  • Minimum Wire Gauge 14 AWG
  • Maximum Wire Gauge 8 AWG
  • Mounting Type Plug-ON,IN
  • Temperature Rating 104°F (40°C)
  • Certifications UL Listed, CSA Certified, and HACR Rated
