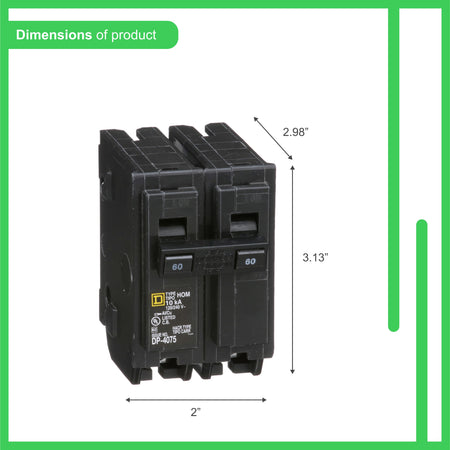

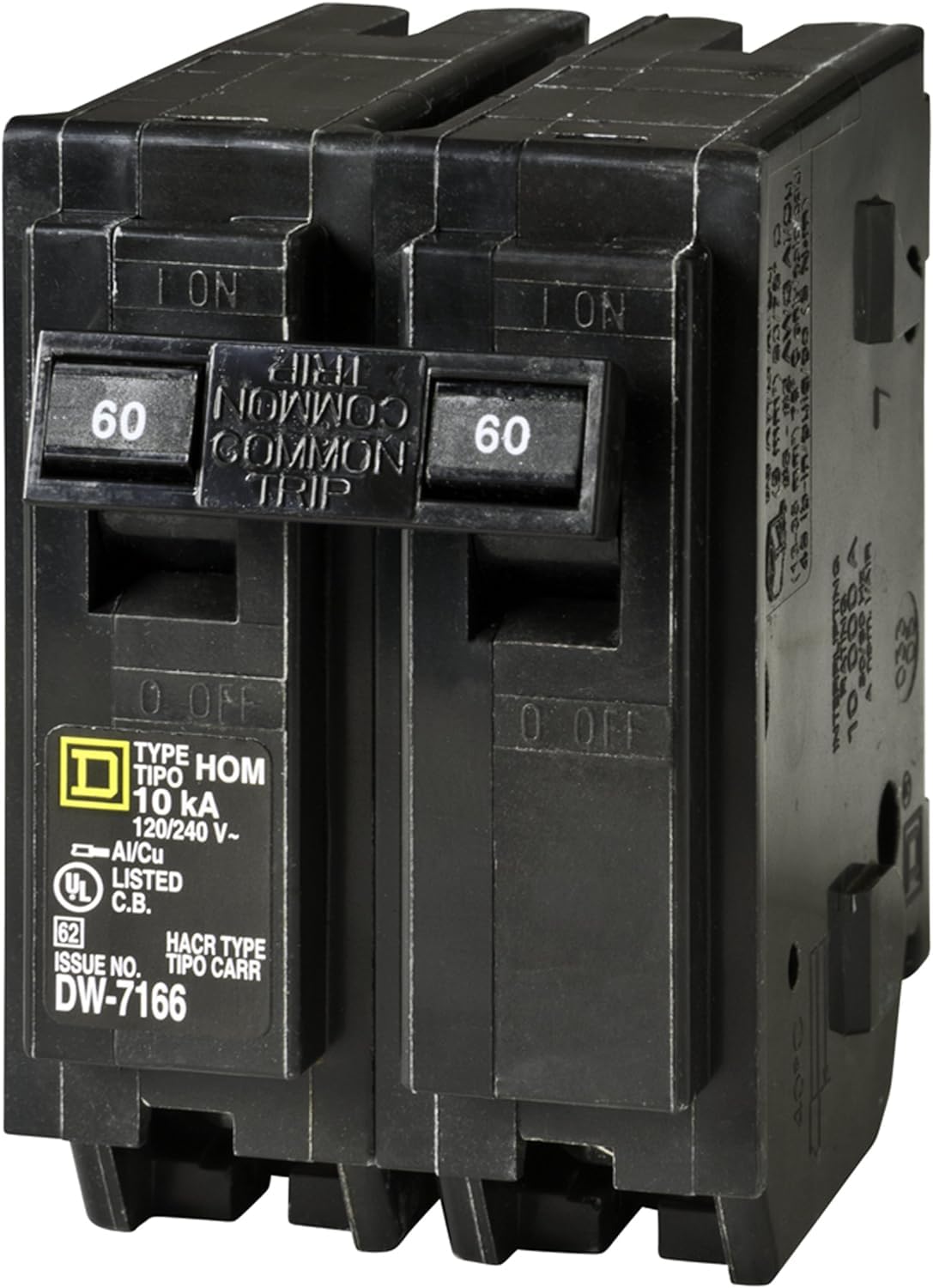

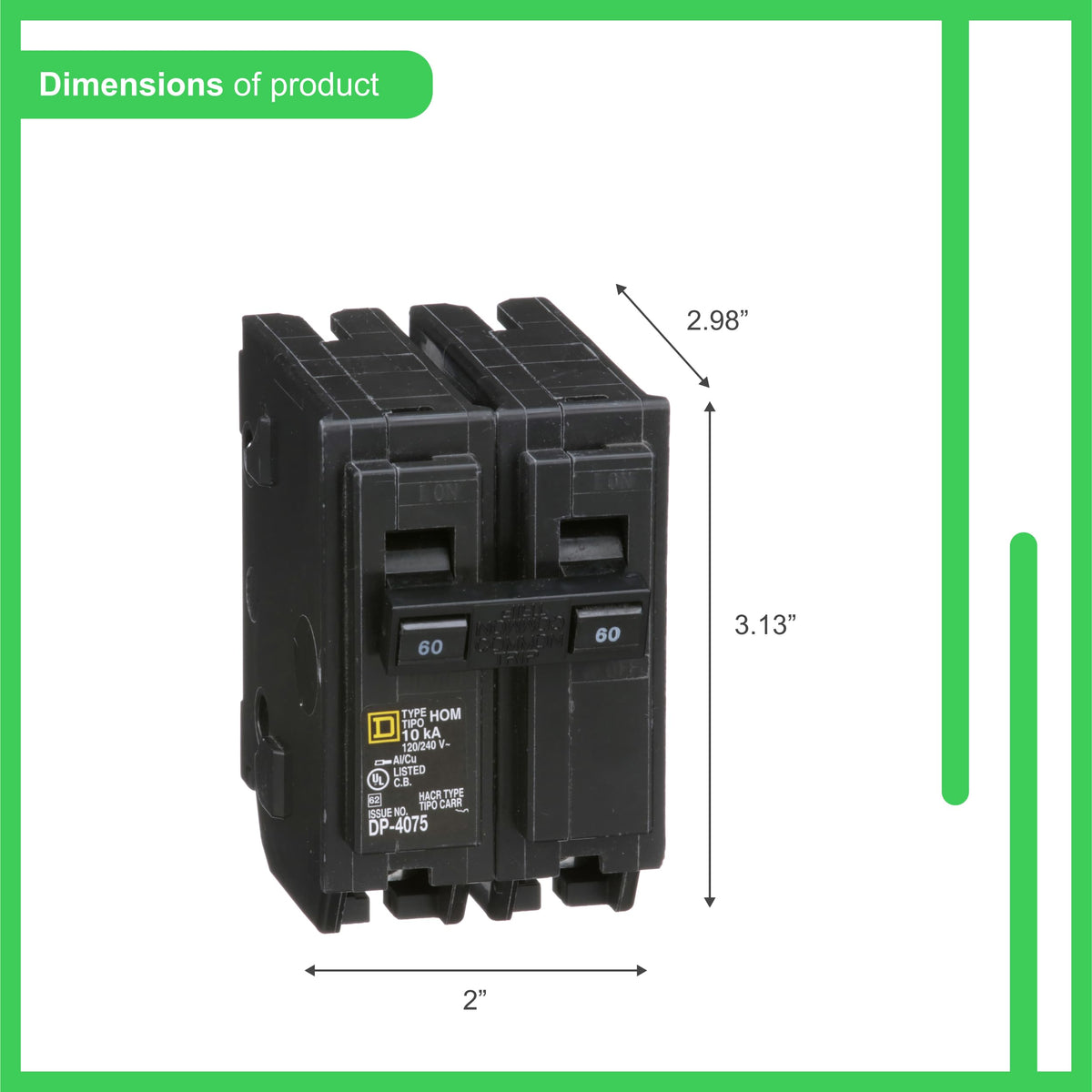

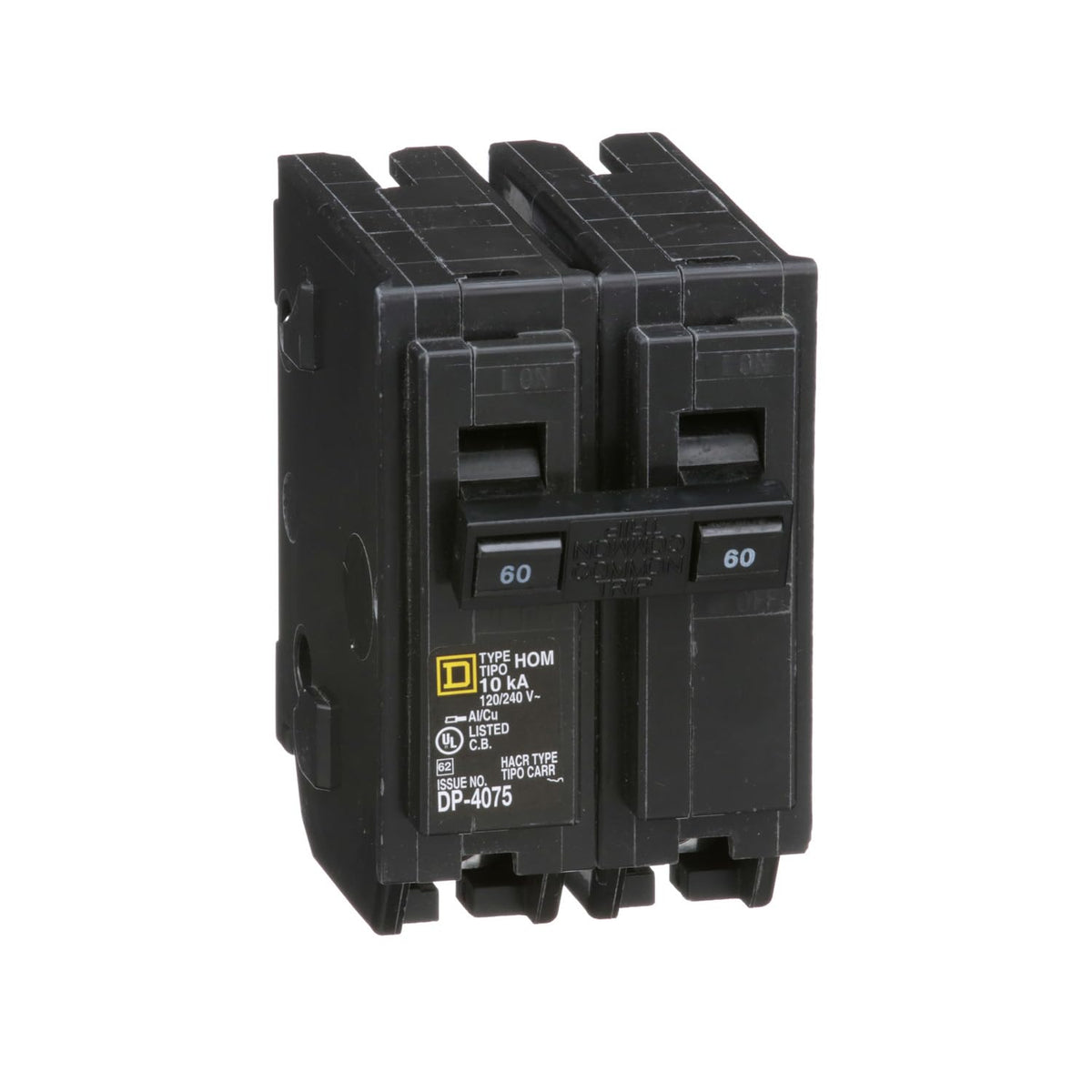

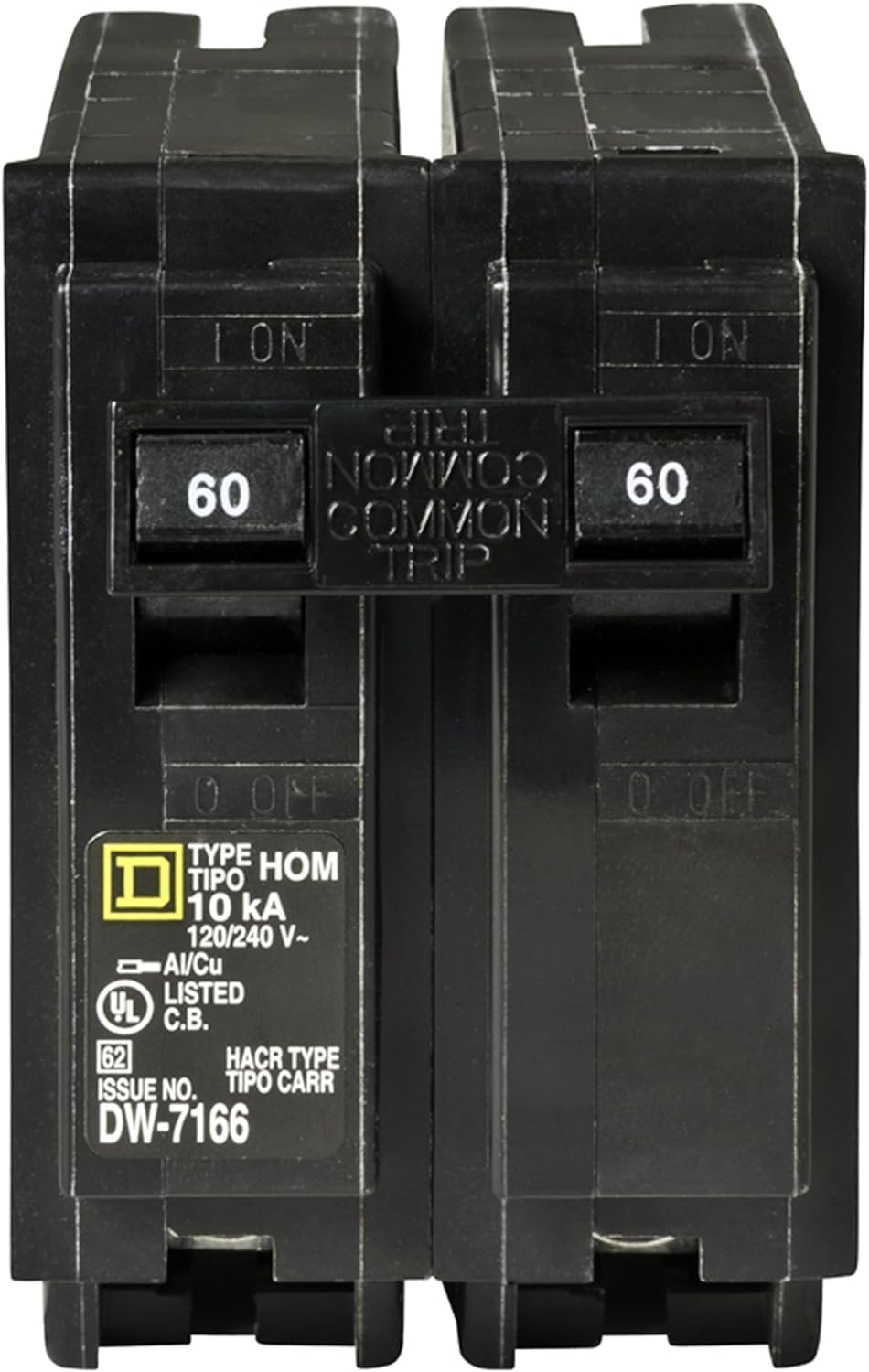

Square D HOM260 60A 2-pole Homeline circuit breaker
Square D HOM260 60A 2-pole Homeline circuit breaker
Square D HOM260 60A 2-pole Homeline circuit breaker
Square D HOM260 60A 2-pole Homeline circuit breaker
Square D HOM260 60A 2-pole Homeline circuit breaker
Square D HOM260 60A 2-pole Homeline circuit breaker
Square D HOM260 60A 2-pole Homeline circuit breaker
Square D HOM260 60A 2-pole Homeline circuit breaker

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D HOM260 60A 120/240V 2-Pole Thermal-Magnetic Plug-In Circuit Breaker 10kAIC

Out of stock
SKU: HOM260 NEW
(0)
$20.19
Condition
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa

Overview

The Square D HOM260 is a 60 A, two-pole Homeline thermal-magnetic circuit breaker for compatible Homeline load centers. Its plug-in design protects 120/240 V AC circuits with a 10 kA interrupting rating.

Key Features

  • Safety: Thermal-magnetic trip protection responds to overload and short-circuit conditions.
  • Installation: Plug-in construction provides a direct fit in compatible Homeline load centers.
  • Compatibility: Designed for Square D Homeline equipment that accepts HOM-series breakers.
  • Performance: 60 A two-pole protection at 120/240 V with a 10 kA interrupting rating.

Specifications

  • Manufacturer: Square D by Schneider Electric
  • Model: HOM260
  • Current rating: 60 A
  • Poles / phase: 2 pole / 1 phase
  • Voltage: 120/240 V AC
  • Interrupting rating: 10 kA
  • Protection: Thermal magnetic
  • Wire range: 8–2 AWG
  • Operating temperature: 104°F (40°C)
  • Mounting / terminals: Plug-in; screw clamp
  • Certifications: UL Listed; HACR rated

Common Applications

  • Residential 240 V equipment circuits in compatible Homeline panels.
  • Feeders and branch circuits requiring 60 A two-pole protection.
  • Replacement applications where HOM260 is specified.

Free shipping on eligible orders over $90. Our shipping cutoff is 3 PM, Monday–Friday. Available shipping services and delivery estimates are shown at checkout.

See our shipping policy for eligibility and exclusions. Orders are delivered; our warehouse is closed to the public.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.

Product Specifications

  • Brand Square D
  • Series HOMELINE
  • Model HOM260
  • Breaker Type Regular Breaker and Thermal Magnetic
  • Frame Type NA
  • Phase 1 Phase
  • Pole 2 Pole
  • Voltage 120/240V
  • Amp 60
  • AIC Interrupting Rating 10 kA
  • Terminal Connection Screw Clamp
  • Minimum Wire Gauge 8 AWG
  • Maximum Wire Gauge 2 AWG
  • Mounting Type Plug-ON,IN
  • Temperature Rating 104°F (40°C)
  • Certifications UL Listed and HACR Rated
