Square D HOM230GFI 30-Amp 2-Pole Class A GFCI Circuit Breaker 120/240V 10kA Homeline (Plug-In)

Only 4 left
SKU: HOM230GFI NEW
(0)
$104.48
Condition
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa

Overview

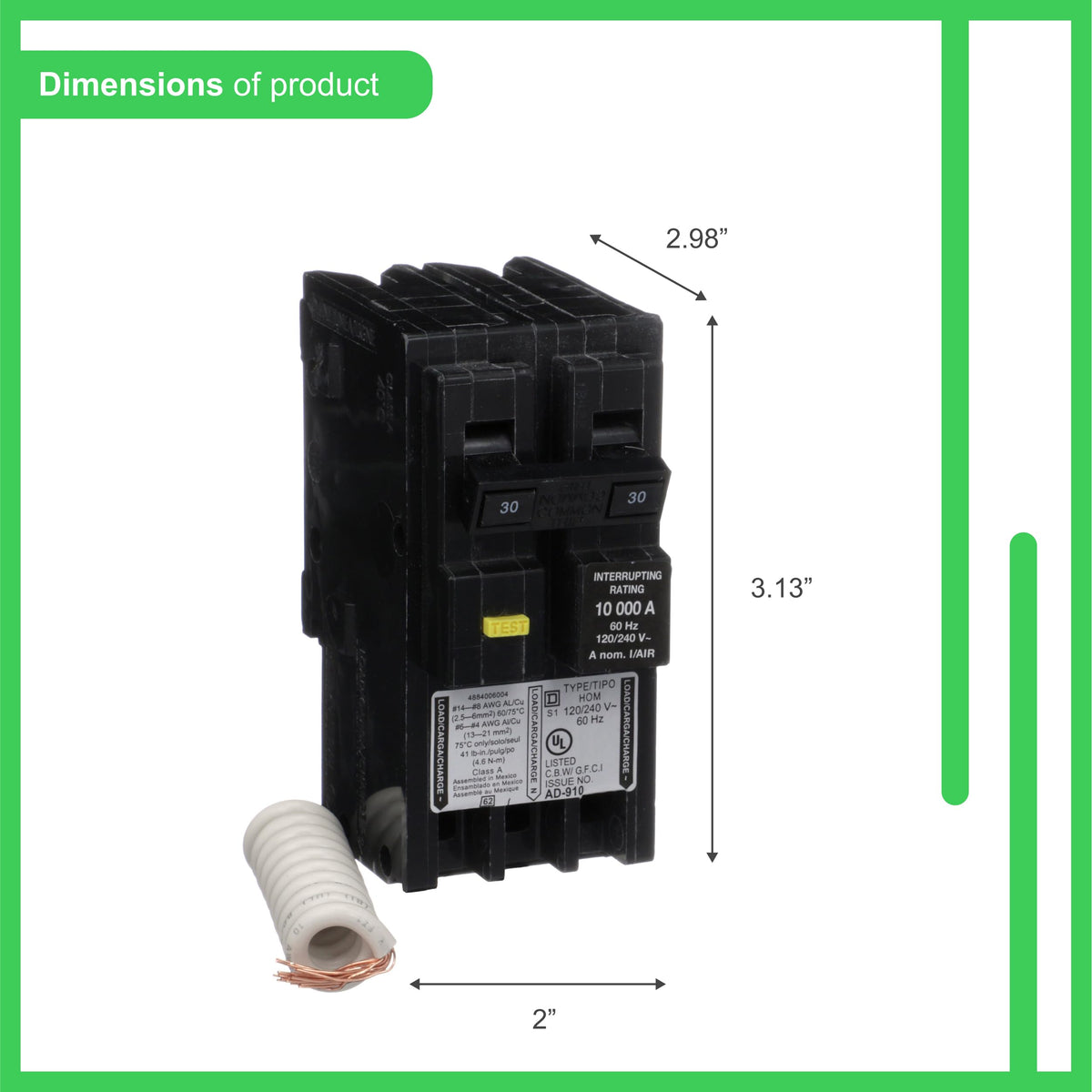

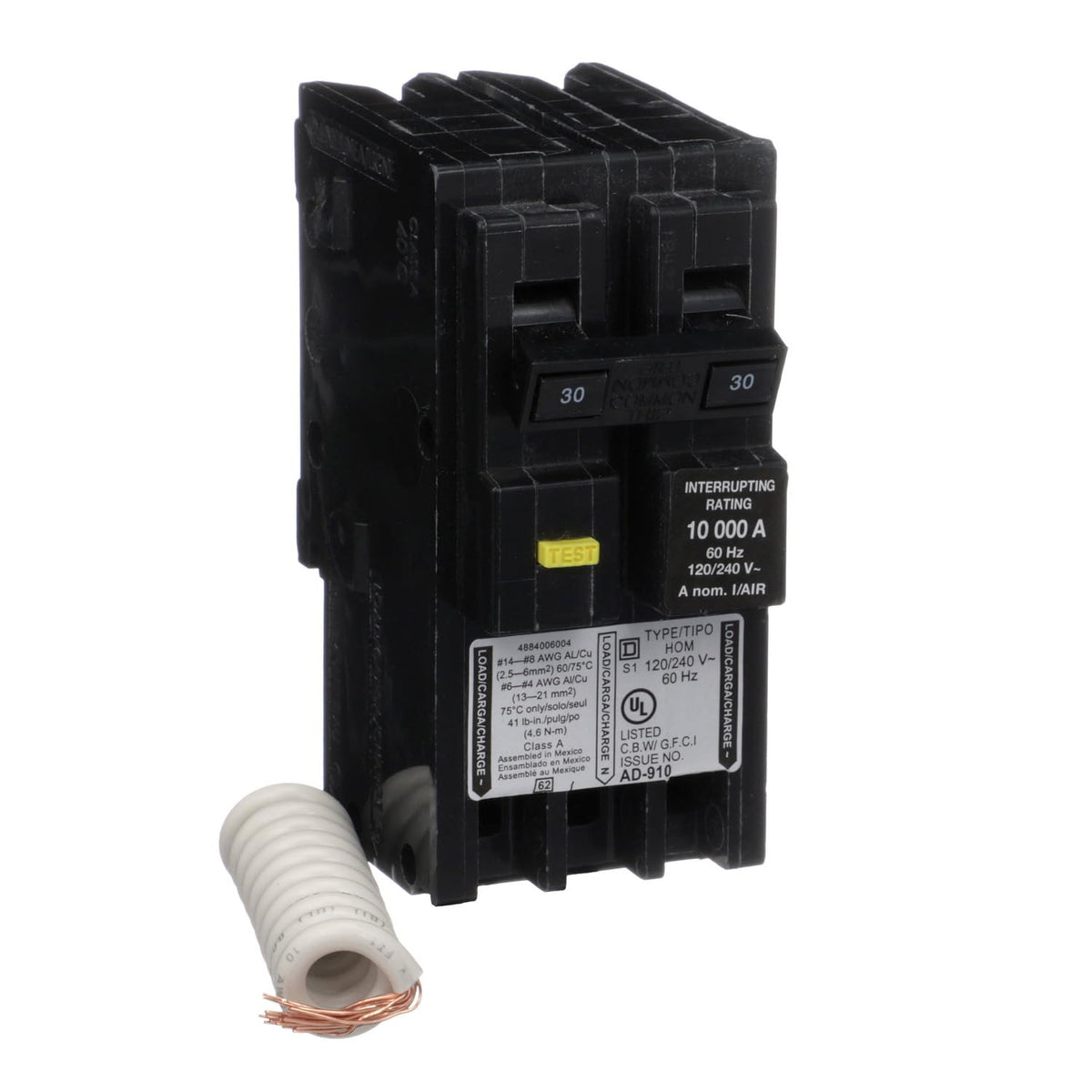

The Square D HOM230GFI is a 30 A, two-pole Homeline Class A ground-fault circuit interrupter breaker for compatible Square D Homeline load centers. It combines 6 mA Class A GFCI sensing with thermal-magnetic overcurrent protection at 120/240 VAC.

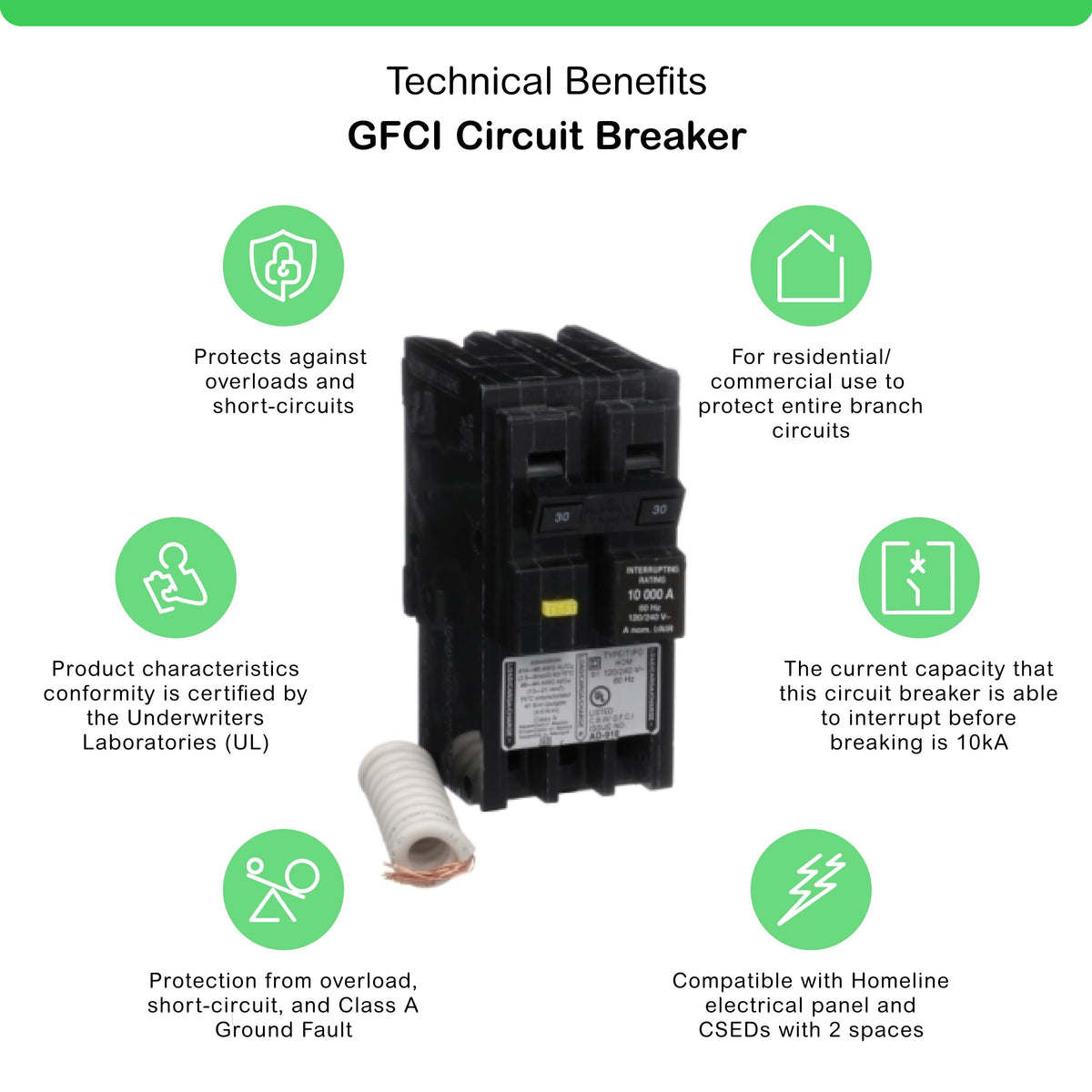

Key Features

  • Protection: Class A 6 mA GFCI protection works with common-trip thermal-magnetic overload and short-circuit protection.
  • Installation: Plug-in mounting, screw-clamp load terminals, and a factory pigtail-neutral connection.
  • Compatibility: For compatible Square D Homeline load centers listed to accept HOM230GFI.
  • Performance: 30 A, two-pole, 120/240 VAC operation with a 10 kA interrupting rating; UL Listed and HACR rated.

Specifications

  • Manufacturer / model: Square D HOM230GFI
  • Series: Homeline
  • Current / poles / phase: 30 A, 2 poles, single phase
  • Voltage / interrupting rating: 120/240 VAC, 10 kA
  • Protection: Class A 6 mA GFCI; thermal magnetic
  • Mounting / terminals: Plug-in; screw clamp with pigtail neutral
  • Conductor range: Copper 14–6 AWG; aluminum 12–4 AWG
  • Temperature rating: 104°F (40°C)
  • Certifications: UL Listed; HACR rated

Common Applications

  • 30 A, 120/240 V two-pole circuits requiring Class A ground-fault protection.
  • Like-for-like HOM230GFI replacement in manufacturer-listed Homeline equipment.
  • Exact-model replacement after confirming panel labeling, circuit voltage, conductor size, and applicable electrical code requirements.

Free shipping on eligible orders over $90. Our shipping cutoff is 3 PM, Monday–Friday. Available shipping services and delivery estimates are shown at checkout.

See our shipping policy for eligibility and exclusions. Orders are delivered; our warehouse is closed to the public.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.

Product Specifications

  • Brand Square D
  • Series HOMELINE
  • Model HOM230GFI
  • Breaker Type Ground Fault Breaker (GFCI) and Thermal Magnetic
  • Frame Type NA
  • Phase 1 Phase
  • Pole 2 Pole
  • Voltage 120/240V
  • Amp 30
  • AIC Interrupting Rating 10 kA
  • Terminal Connection Screw Clamp and Pigtail-Neutral
  • Minimum Wire Gauge 12 AWG and 14 AWG
  • Maximum Wire Gauge 4 AWG and 6 AWG
  • Mounting Type Plug-ON,IN
  • Temperature Rating 104°F (40°C)
  • Certifications UL Listed and HACR Rated
