Overview

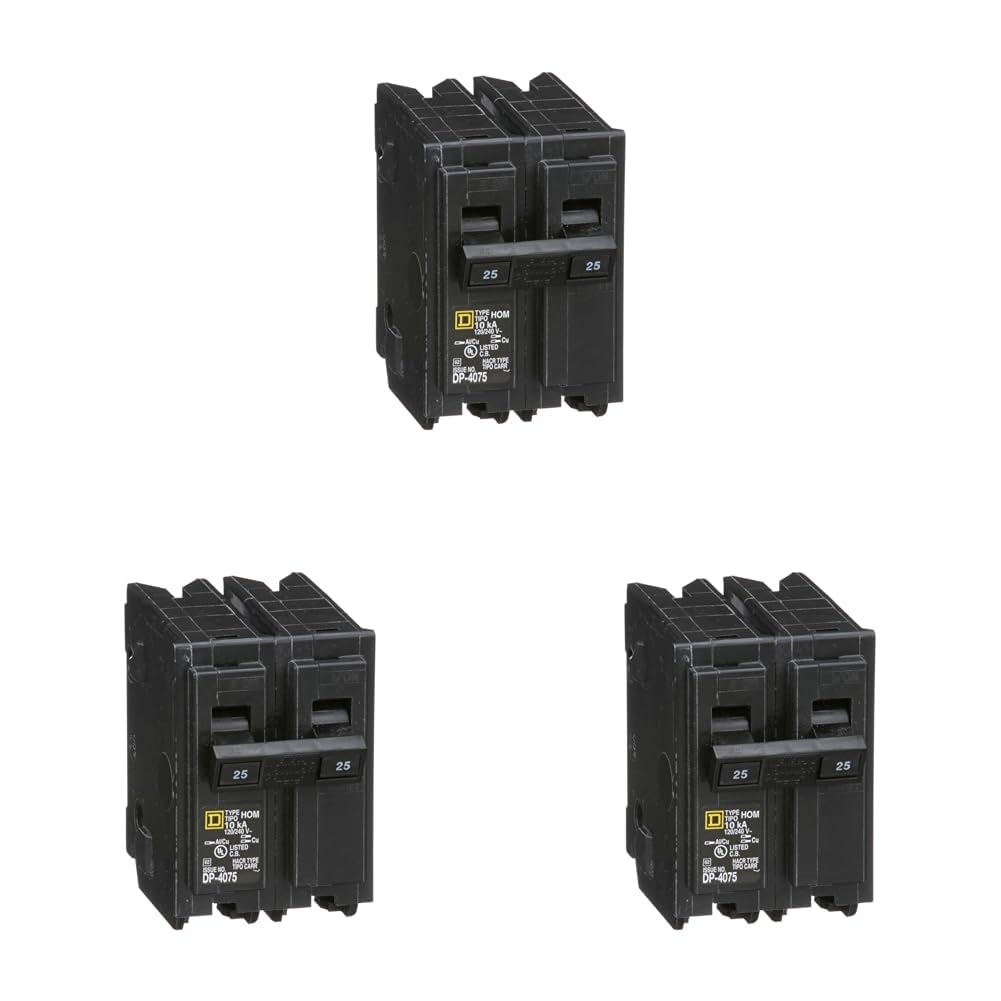

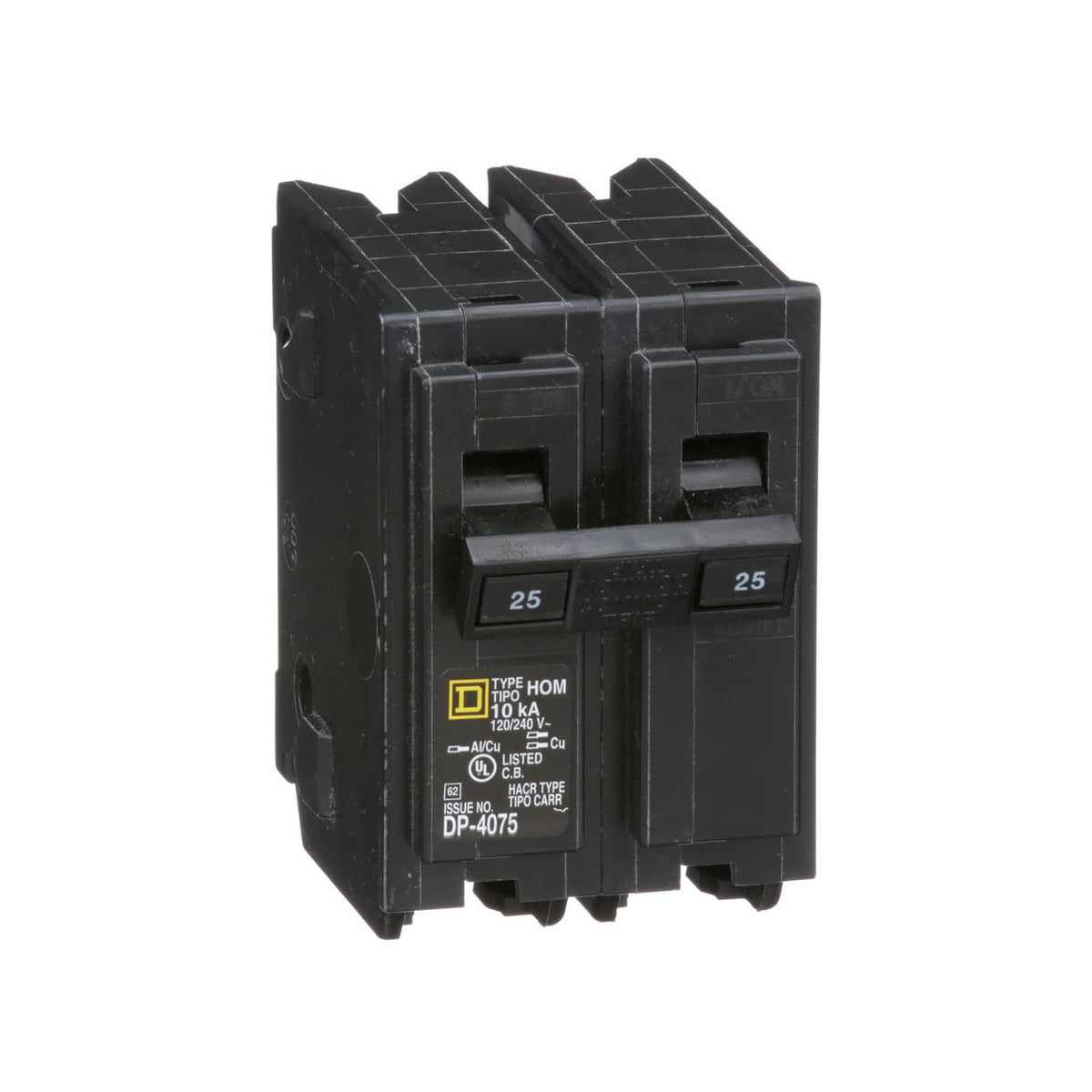

The Square D HOM225 is a 25 A, 120/240 V AC, two-pole Homeline circuit breaker for compatible Square D Homeline load centers. Its standard thermal-magnetic trip system, plug-in mounting, and 10 kA interrupting rating provide common-trip protection for supported two-pole circuits.

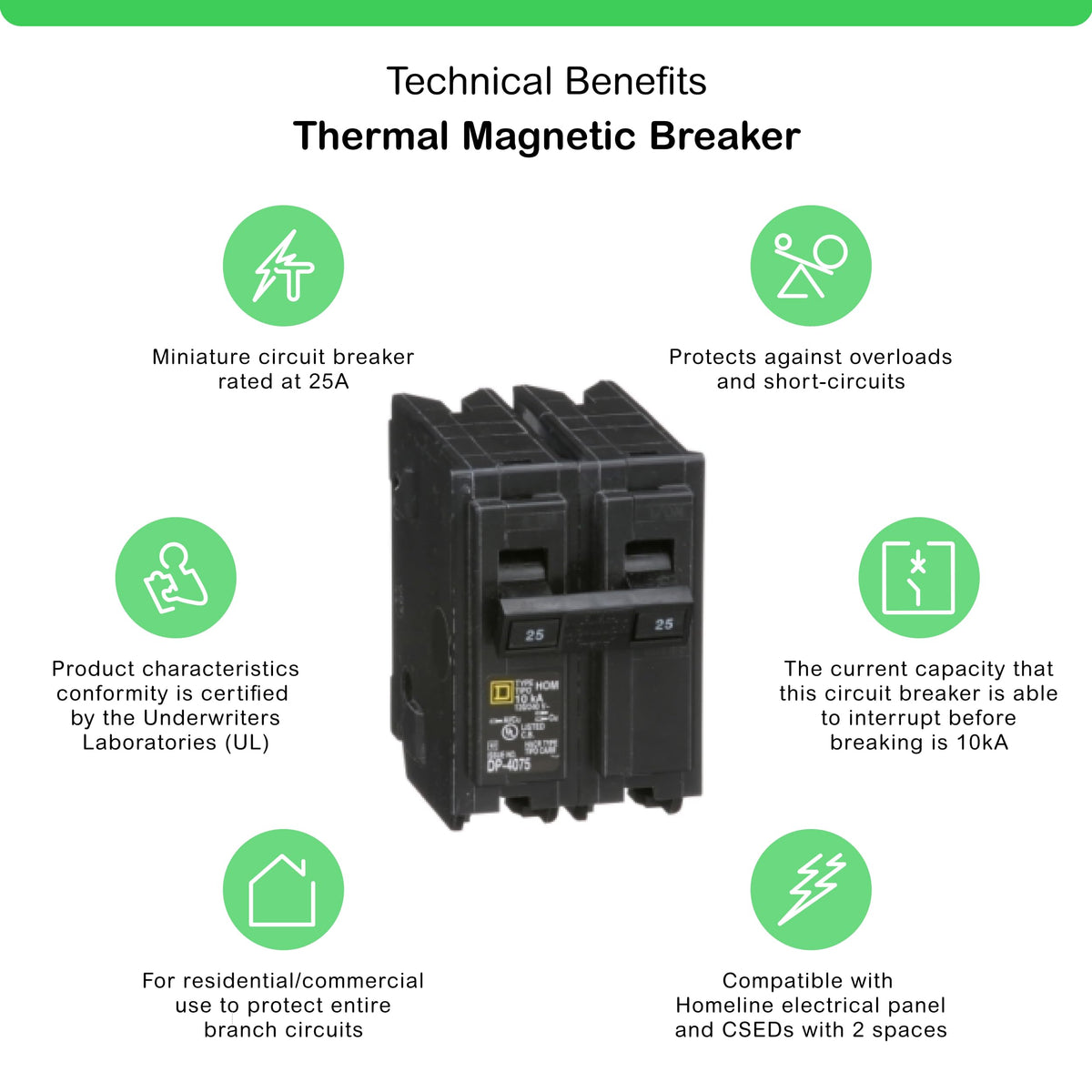

Key Features
-
Thermal-magnetic protection: Responds to sustained overload and short-circuit conditions on manufacturer-approved circuits.
-
Two-pole common trip: Disconnects both poles together for compatible 120/240 V AC loads.
-
Plug-in installation: Designed for Square D Homeline load centers listed to accept HOM225.
-
Compact branch protection: Delivers a 25 A rating with a 10 kA interrupting capacity.
Specifications
-
Manufacturer / model: Square D HOM225
-
Series: Homeline
-
Current / voltage: 25 A / 120/240 V AC
-
Poles / phase: 2 poles / single phase
-
Protection: Standard thermal magnetic
-
Interrupting rating: 10 kA
-
Mounting / terminal: Plug-in; screw clamp
-
Conductor range: 14–8 AWG
-
Temperature rating: 104°F (40°C)
-
Certification: UL Listed; HACR rated
Common Applications
- Compatible Square D Homeline load centers requiring a 25 A two-pole breaker.
- 120/240 V circuits where the equipment listing specifies HOM225.
- Like-for-like replacement of an existing HOM225 breaker.
