Overview

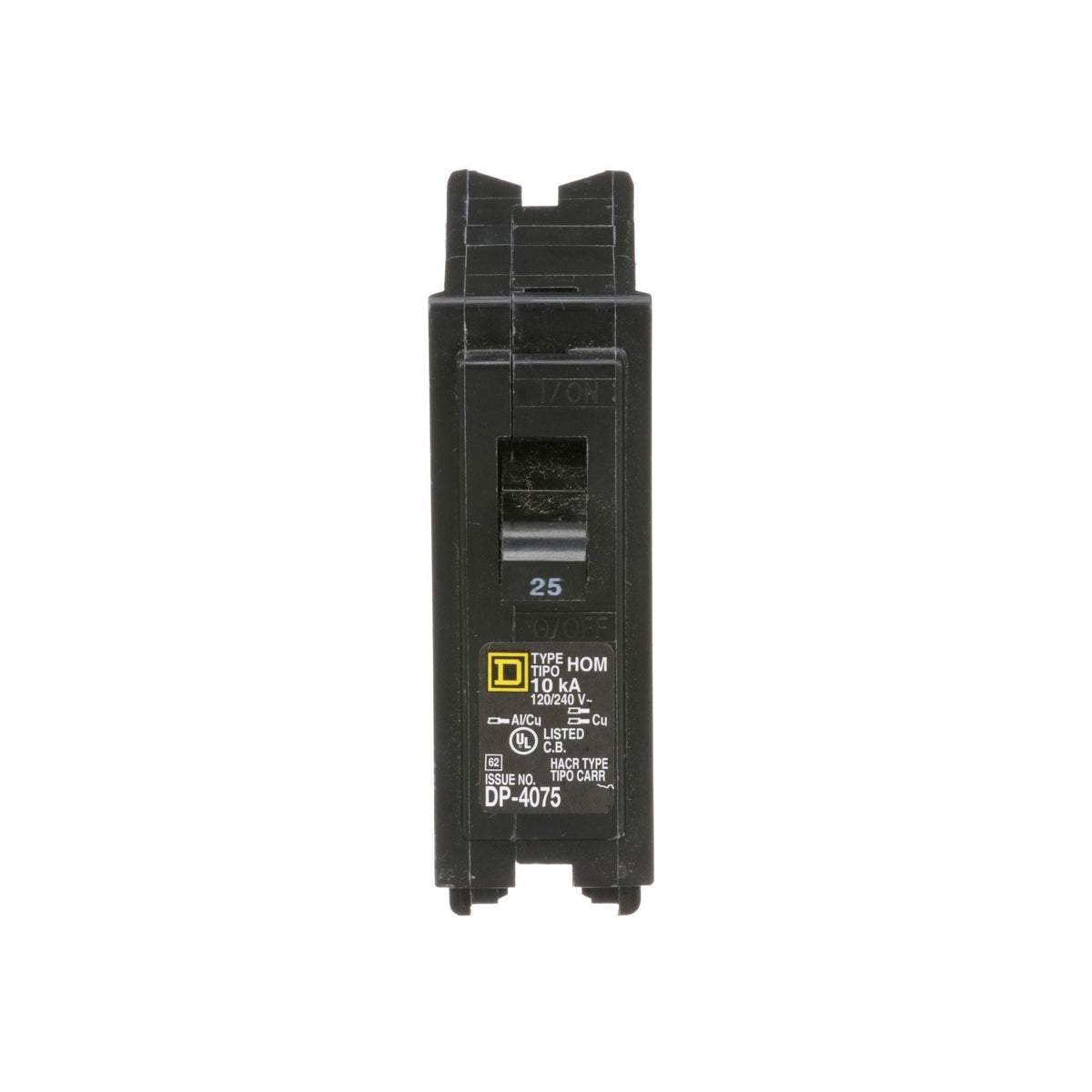

The Square D HOM125 is a 25 Amp, single-pole Homeline circuit breaker for compatible Square D Homeline load centers and combination service equipment. It provides standard thermal-magnetic overload and short-circuit protection at 120/240 VAC with a 10 kA interrupting rating and plug-in mounting.
Key Features
-
Protection: Thermal-magnetic operation protects branch circuits from sustained overloads and short circuits.
-
Installation: One-inch plug-in design seats directly in compatible Square D Homeline load centers.
-
Compatibility: Clamp terminal accepts 14–8 AWG copper or aluminum conductors.
-
Certification: UL Listed and HACR rated for residential and light-commercial circuit protection.
Specifications
- Model: HOM125
- Current rating: 25 A
- Poles: 1
- Voltage: 120/240 VAC
- Interrupting rating: 10 kA AIR
- Series/frame: Homeline / HOM
- Mounting: Plug-in
- Wire range: 14–8 AWG copper or aluminum
- Dimensions: 3.13 in H × 1.00 in W × 2.98 in D
Common Applications
- Residential 25 A branch circuits in compatible Homeline panels.
- Light-commercial circuits requiring standard single-pole overload and short-circuit protection.
- Replacement installations where the equipment manufacturer specifies a Square D Homeline breaker.
