Overview

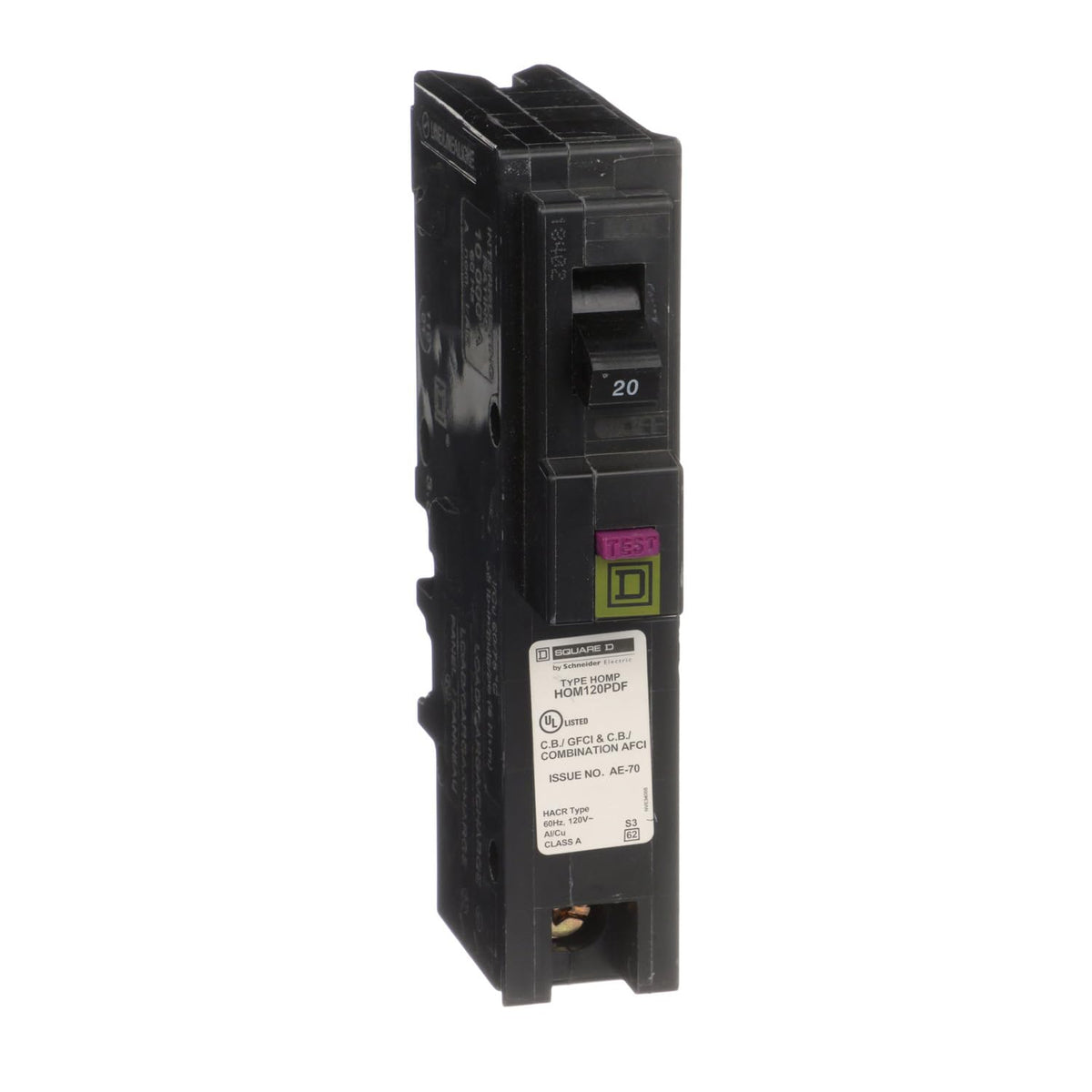

The Square D HOM120PDF is a 20 A, 120 VAC, single-pole Homeline dual-function breaker with plug-on-neutral construction. It combines combination arc-fault protection, Class A ground-fault protection and thermal-magnetic overcurrent protection in one 10 kA AIR device.

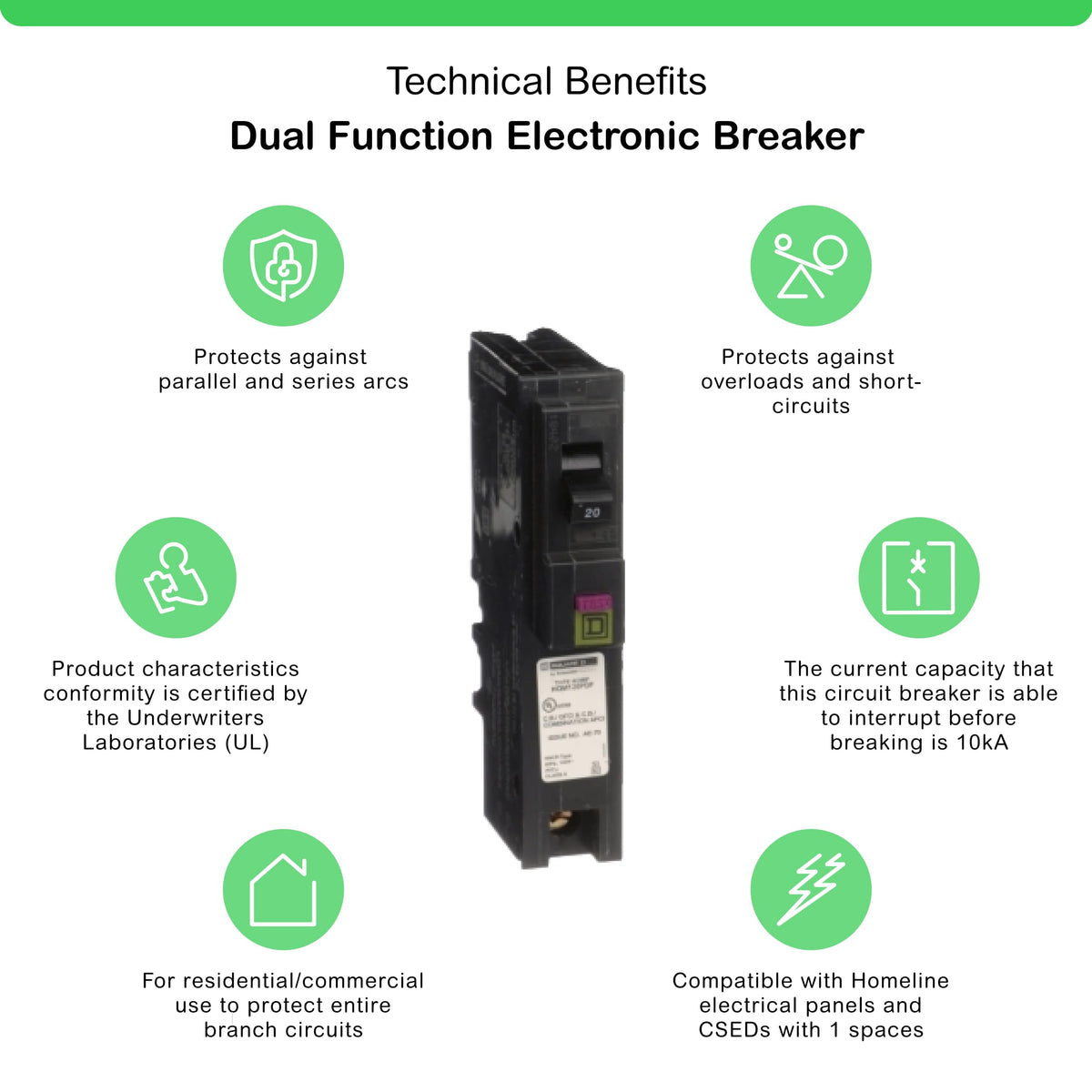

Key Features
-
Protection: Dual-function sensing protects against hazardous series/parallel arc faults and personnel ground faults, while the thermal-magnetic trip responds to overloads and short circuits.
-
Installation: The plug-on-neutral connection seats directly on the neutral bar in compatible Homeline equipment, and the screw-clamp terminal secures the branch conductor without a pigtail.
-
Compatibility: Use only in Square D Homeline plug-on-neutral load centers or CSEDs specifically listed for HOM120PDF.
-
Performance: Rated 20 A, 1 pole, 120 VAC and 10 kA AIR for circuits requiring both AFCI and GFCI protection.
Specifications
-

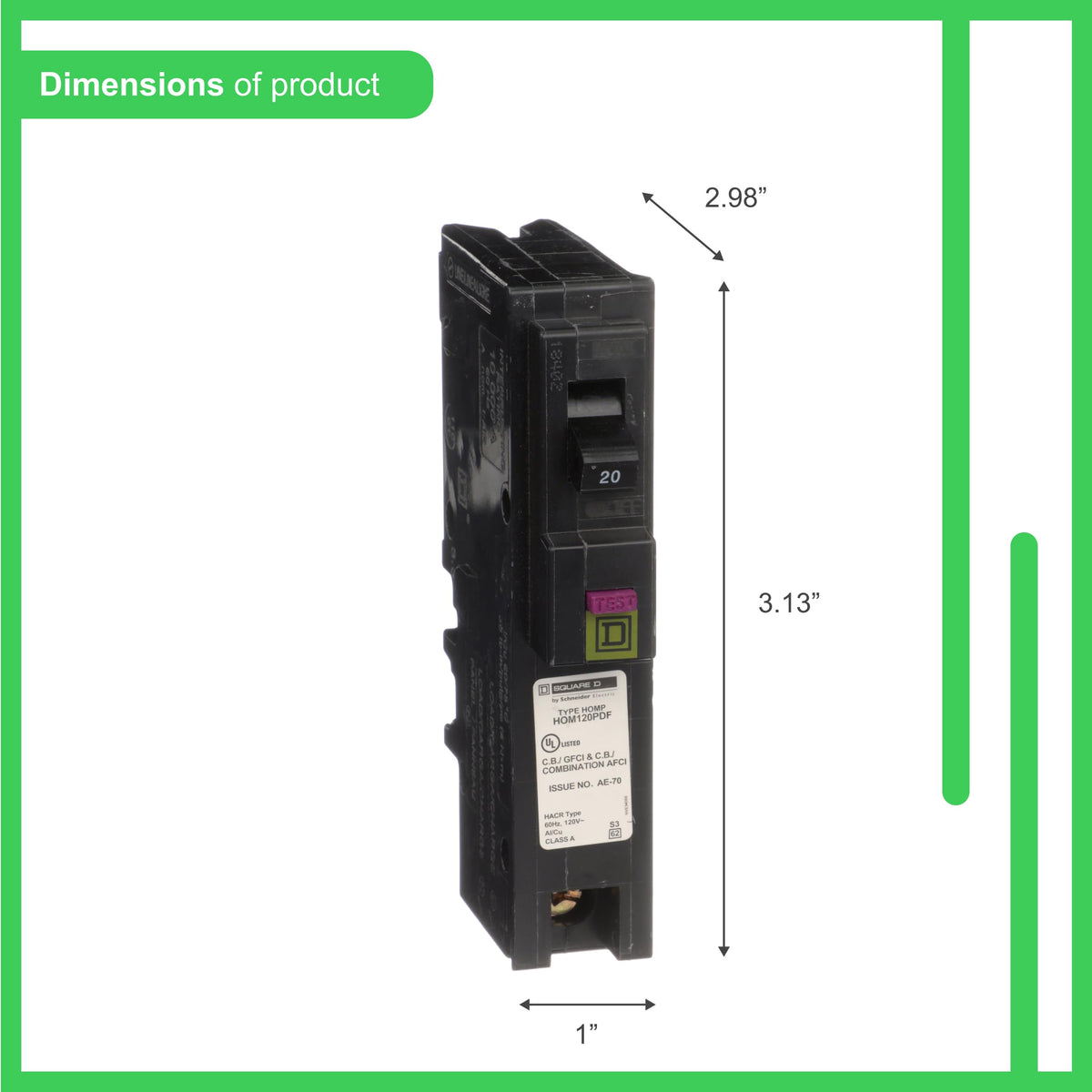

Model: Square D HOM120PDF
-
Electrical rating: 20 A, 1 pole, 1 phase, 120 VAC
-
Interrupting rating: 10 kA AIR
-
Mounting and connection: Homeline plug-in / plug-on-neutral with screw-clamp load terminal
-
Conductor range: 14–8 AWG
-
Temperature and certifications: 40°C ambient rating; UL Listed; HACR rated
Common Applications
- Kitchen, laundry and similar dwelling circuits where both AFCI and GFCI protection are required.
- Residential renovations using a compatible Homeline plug-on-neutral load center.
- Exact-model replacement for HOM120PDF in listed equipment.
