Overview

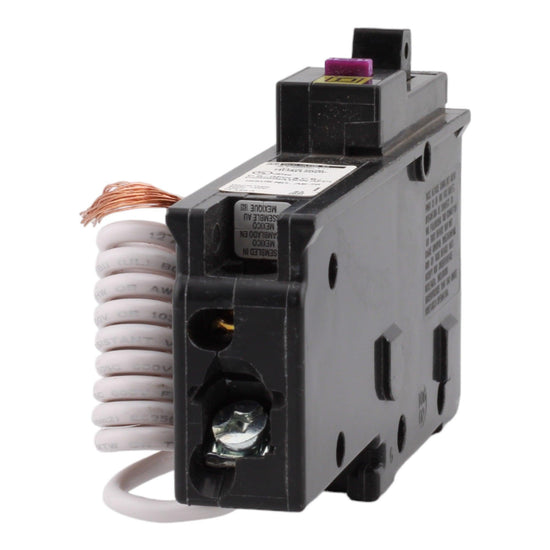

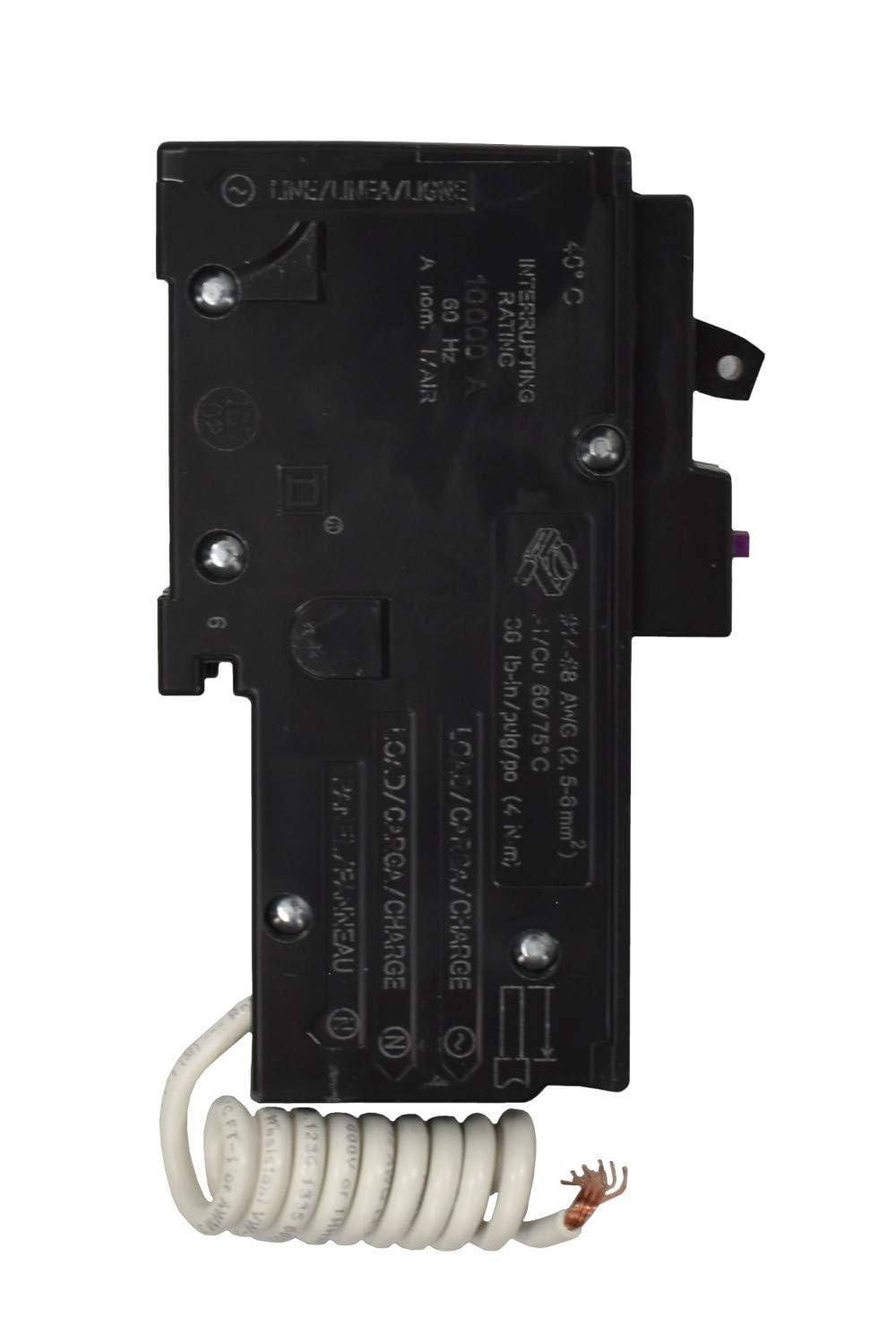

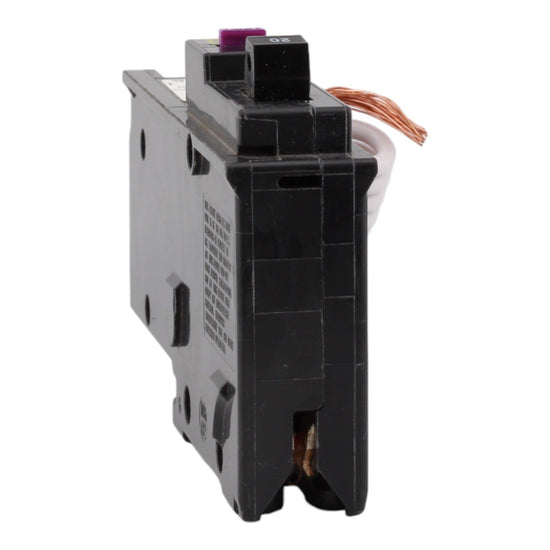

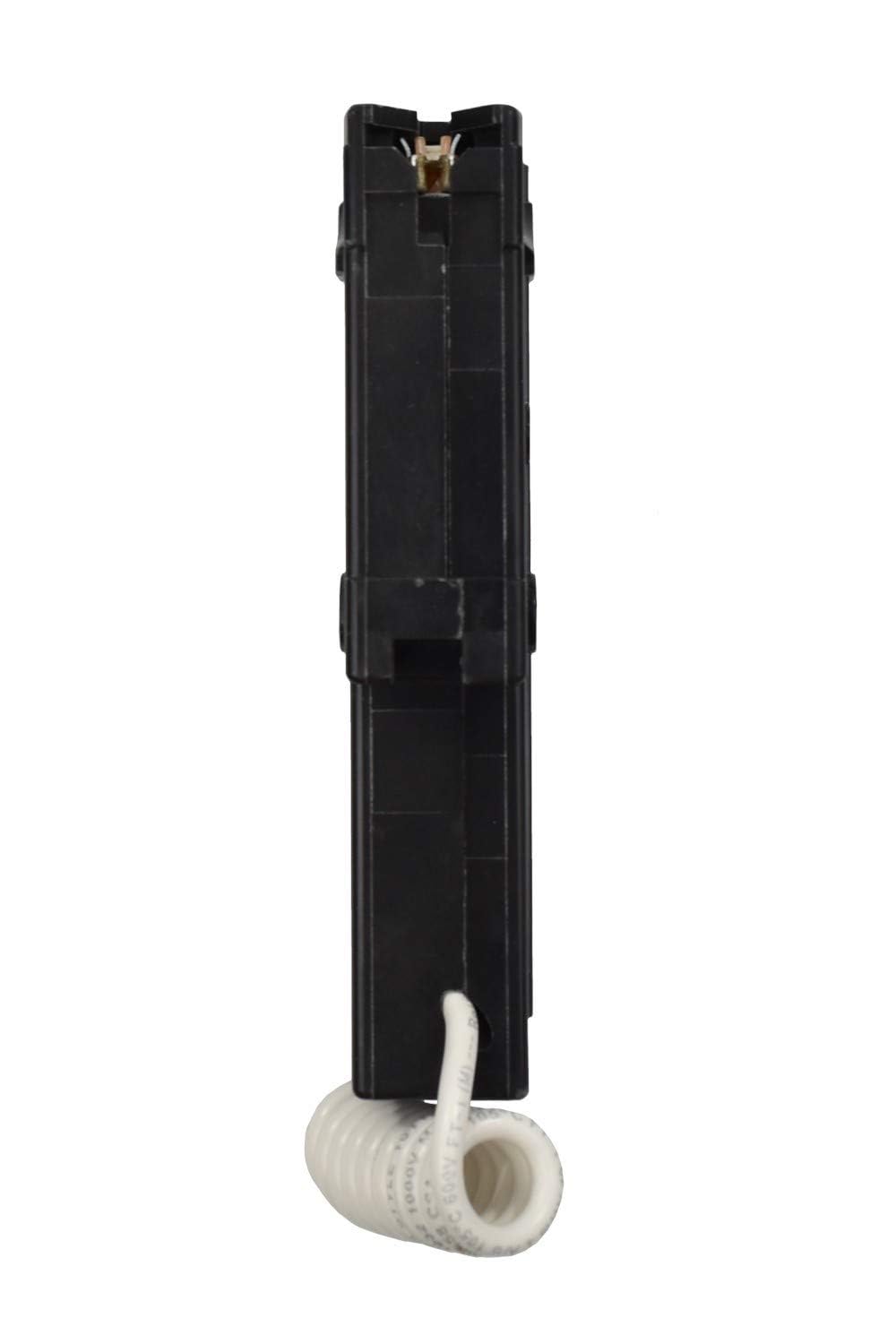

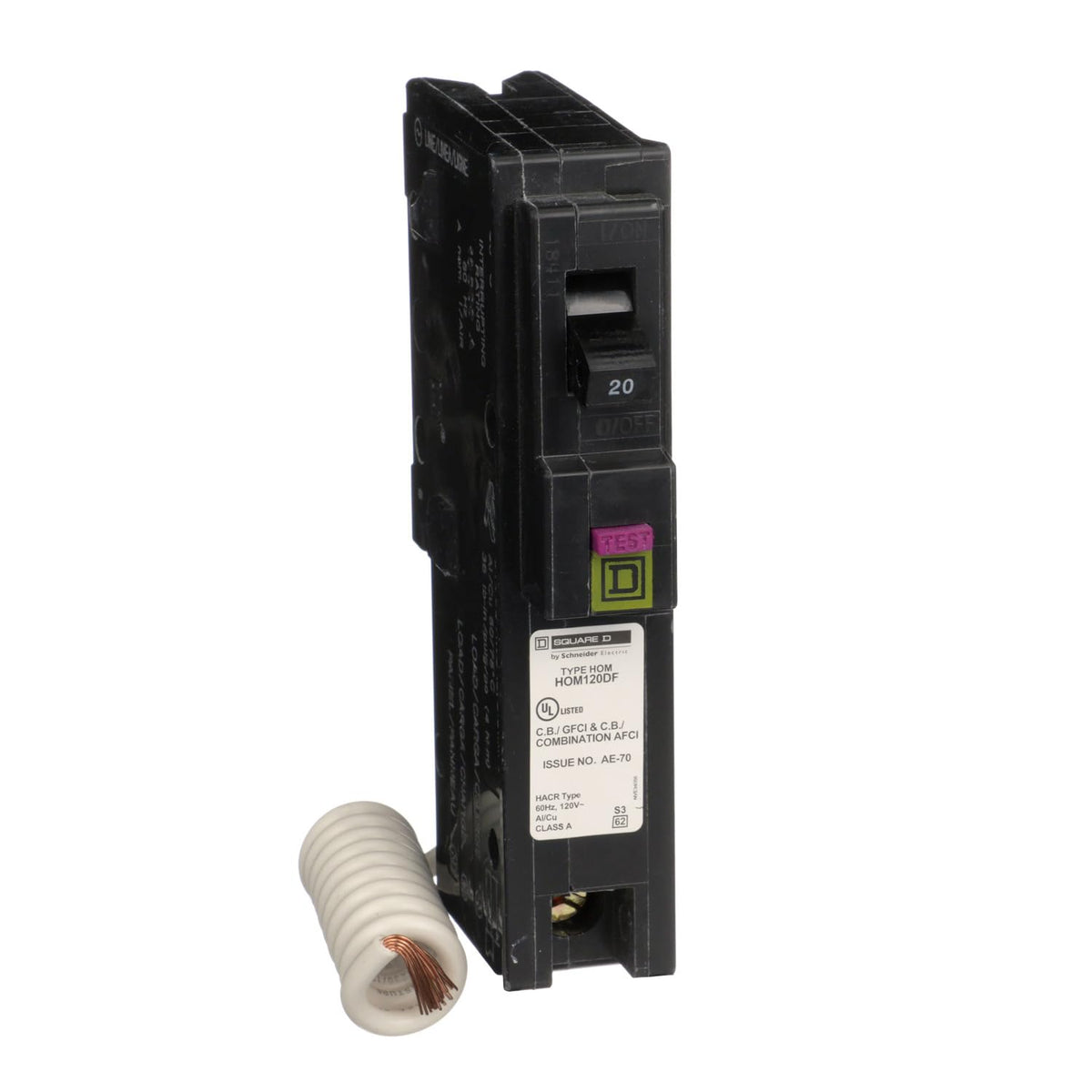

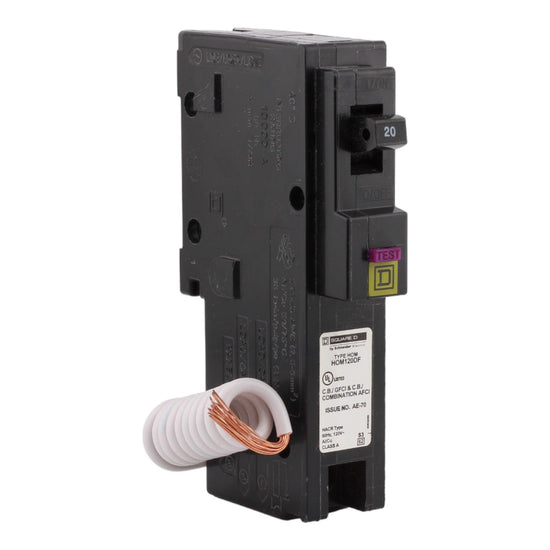

The Square D HOM120DF is a 20 A, 120 V AC, single-pole Homeline dual-function circuit breaker for compatible Square D Homeline load centers. It combines AFCI and GFCI protection with thermal-magnetic overcurrent protection, plug-in mounting, a pigtail neutral, and a 10 kA interrupting rating.
Key Features
-
Dual-function protection: Provides combination arc-fault and ground-fault protection in one exact-MPN breaker.
-
Pigtail-neutral installation: Uses plug-in mounting with screw-clamp and pigtail-neutral connections for compatible Homeline equipment.
-
Homeline compatibility: Intended for manufacturer-listed Square D Homeline load centers that accept HOM120DF.
-
20 A branch rating: One-pole construction supports compatible 120 V circuits with a 10 kA interrupting rating.
Specifications
-
Manufacturer / model: Square D HOM120DF
-
Series: Homeline
-
Current / voltage: 20 A / 120 V AC
-
Poles / phase: 1 pole / single phase
-
Protection: Dual function AFCI/GFCI; thermal magnetic
-
Interrupting rating: 10 kA
-
Mounting / terminals: Plug-in; screw clamp and pigtail neutral
-
Conductor range: 14–8 AWG
-
Temperature rating: 104°F (40°C)
-
Certification: UL Listed; HACR rated
Common Applications
- Square D Homeline load centers requiring the exact HOM120DF pigtail-neutral breaker.
- 120 V, 20 A branch circuits requiring both AFCI and GFCI protection.
- Like-for-like replacement of HOM120DF in manufacturer-listed equipment.
