Overview

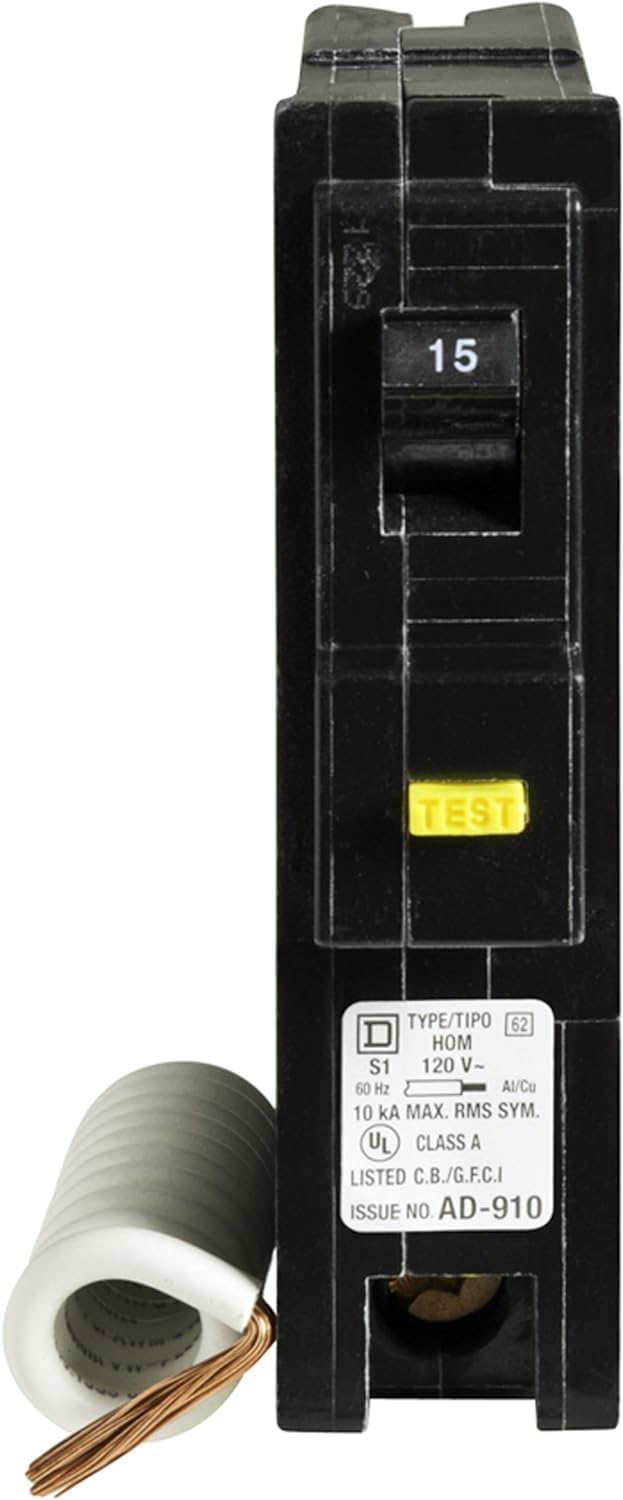

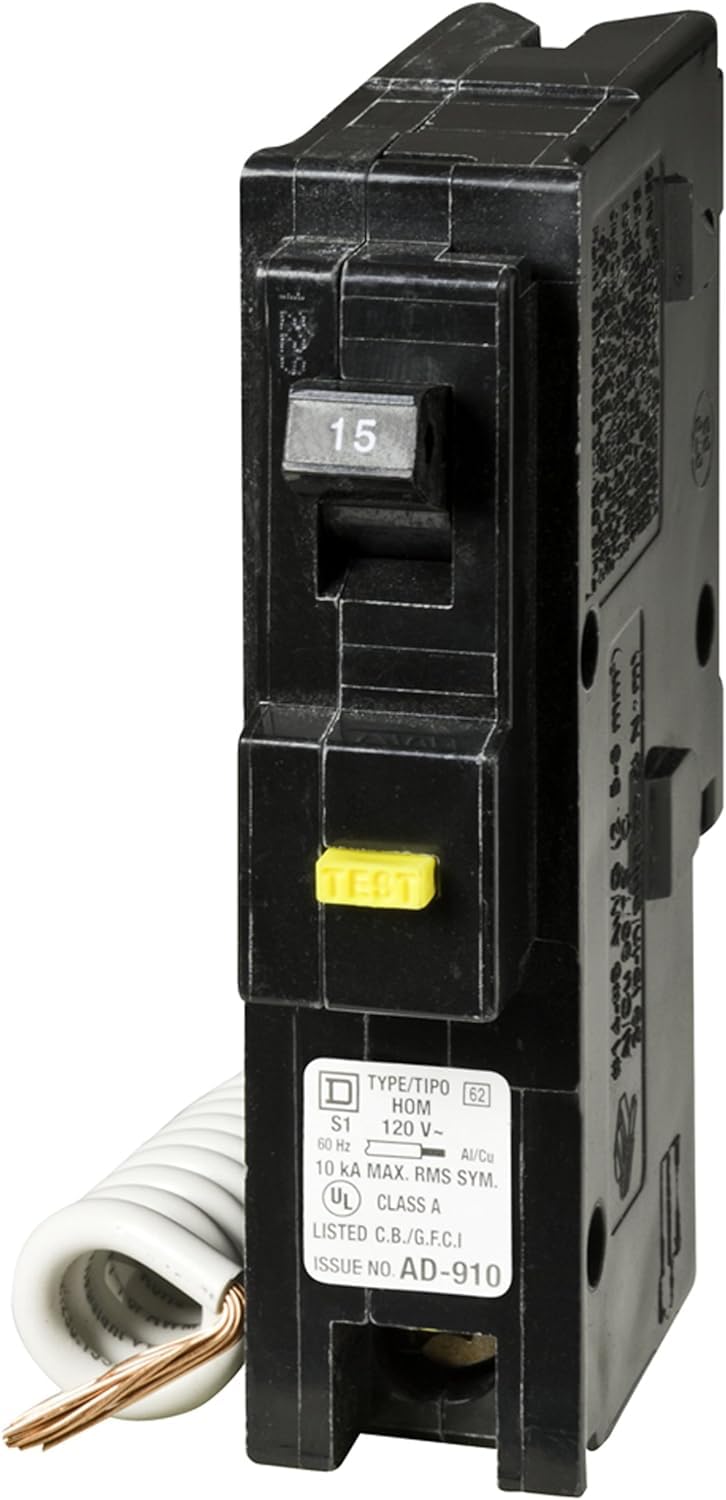

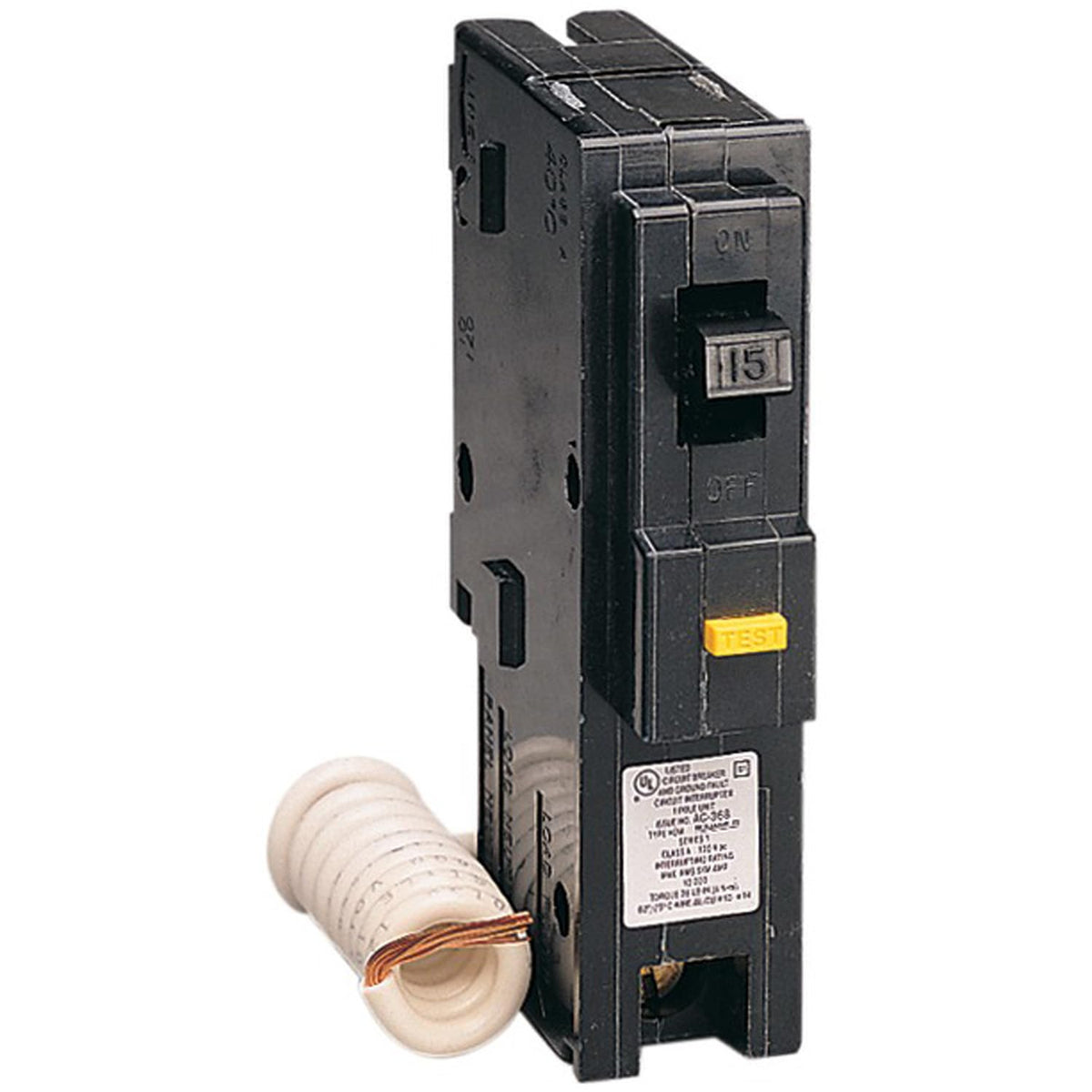

The Square D HOM115GFI is a 15-amp, single-pole Homeline Class A ground-fault circuit interrupter breaker. Rated 120 VAC with a 10 kA interrupting rating, it combines ground-fault protection with thermal-magnetic branch-circuit protection and connects to the panel neutral by pigtail.
Key Features
-
Class A GFCI protection: Provides personnel-level ground-fault protection for a qualifying 120 V branch circuit.
-
Thermal-magnetic trip: Protects against overloads and short circuits in addition to ground faults.
-
Pigtail-neutral design: Connects the breaker electronics to the load-center neutral bar.
-
Homeline plug-in format: Fits listed compatible Square D Homeline load centers.

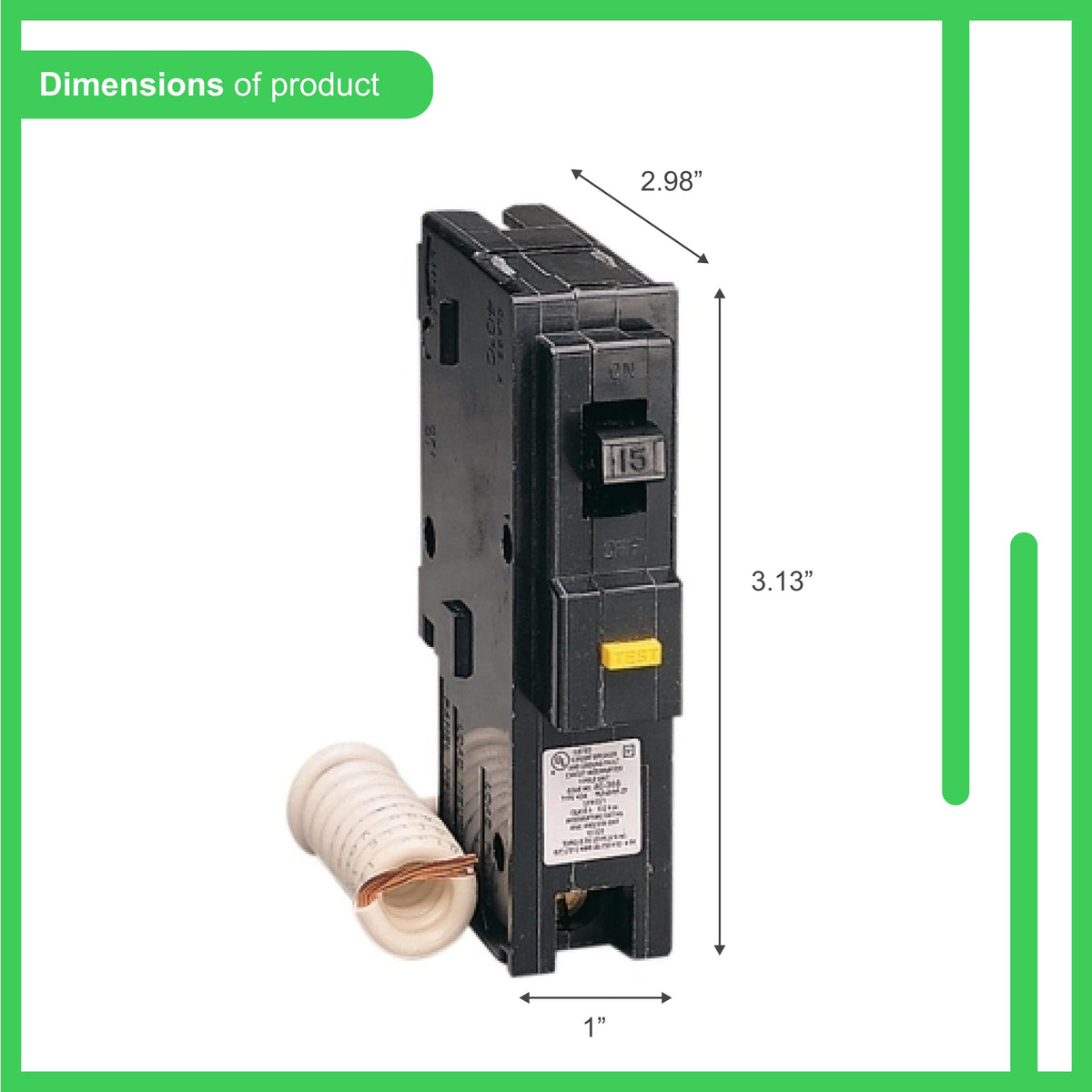

Specifications
-
Manufacturer / model: Square D HOM115GFI
-
Series: Homeline
-
Current / poles: 15 A, 1 pole, 1 phase
-
Voltage / interrupting rating: 120 VAC, 10 kA
-
Protection: Class A GFCI with thermal-magnetic trip
-
Mounting / terminal: Plug-in, screw-clamp load terminal with pigtail neutral
-
Conductor range: 14–10 AWG copper or aluminum
-
Temperature rating: 104°F (40°C)
-
Certification: UL listed
Common Applications
- 120 V branch circuits requiring Class A GFCI protection in a listed compatible Homeline panel.
- Exact-model replacement where HOM115GFI and a pigtail-neutral configuration are specified.
- Residential wet-location and personnel-protection applications when required by the circuit design and applicable code.
