Overview

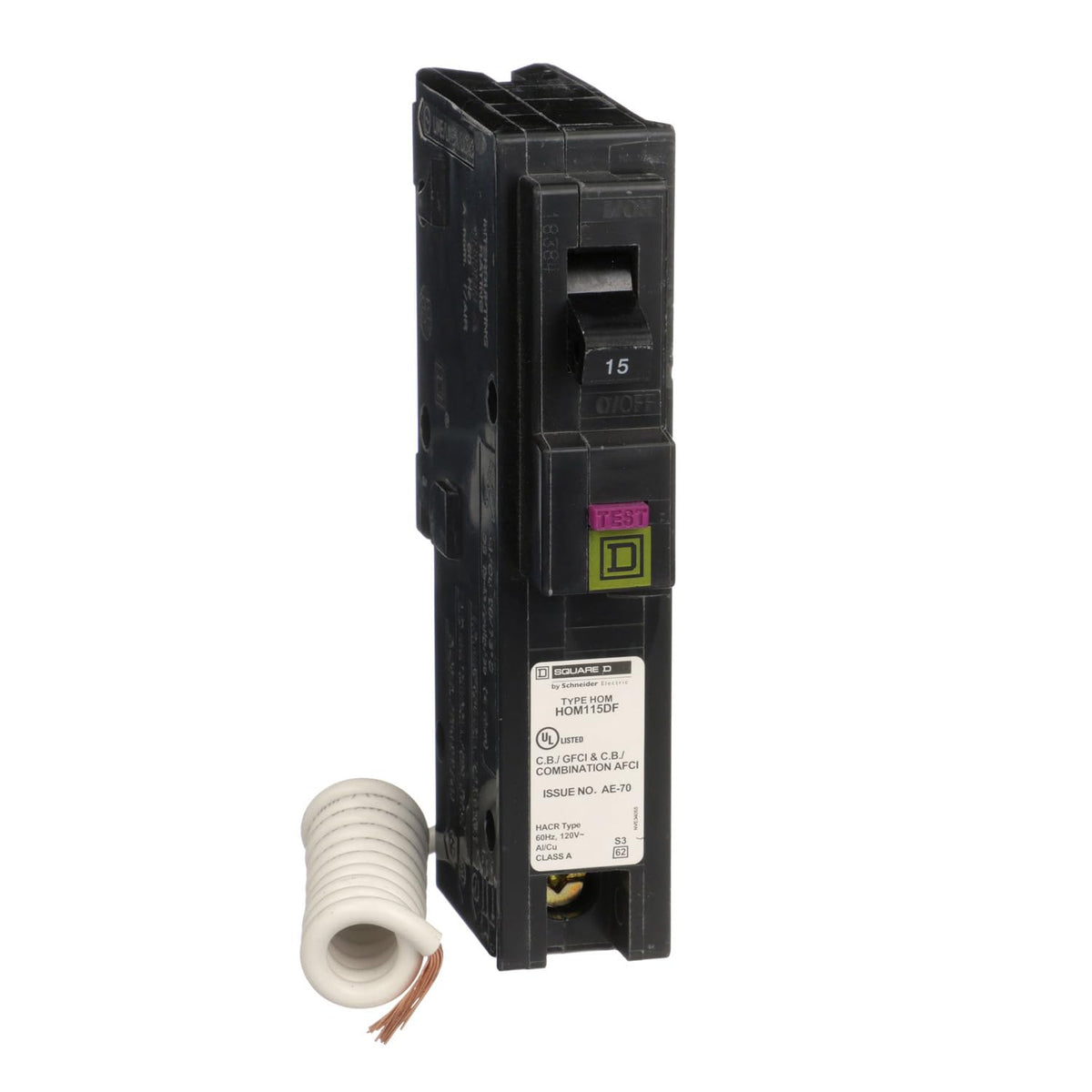

The Square D HOM115DF is a 15-amp, single-pole Homeline dual-function circuit breaker that combines combination arc-fault and Class A ground-fault protection. It is rated 120 VAC with a 10 kA interrupting rating and uses a pigtail-neutral connection for listed compatible Square D Homeline load centers.
Key Features
-

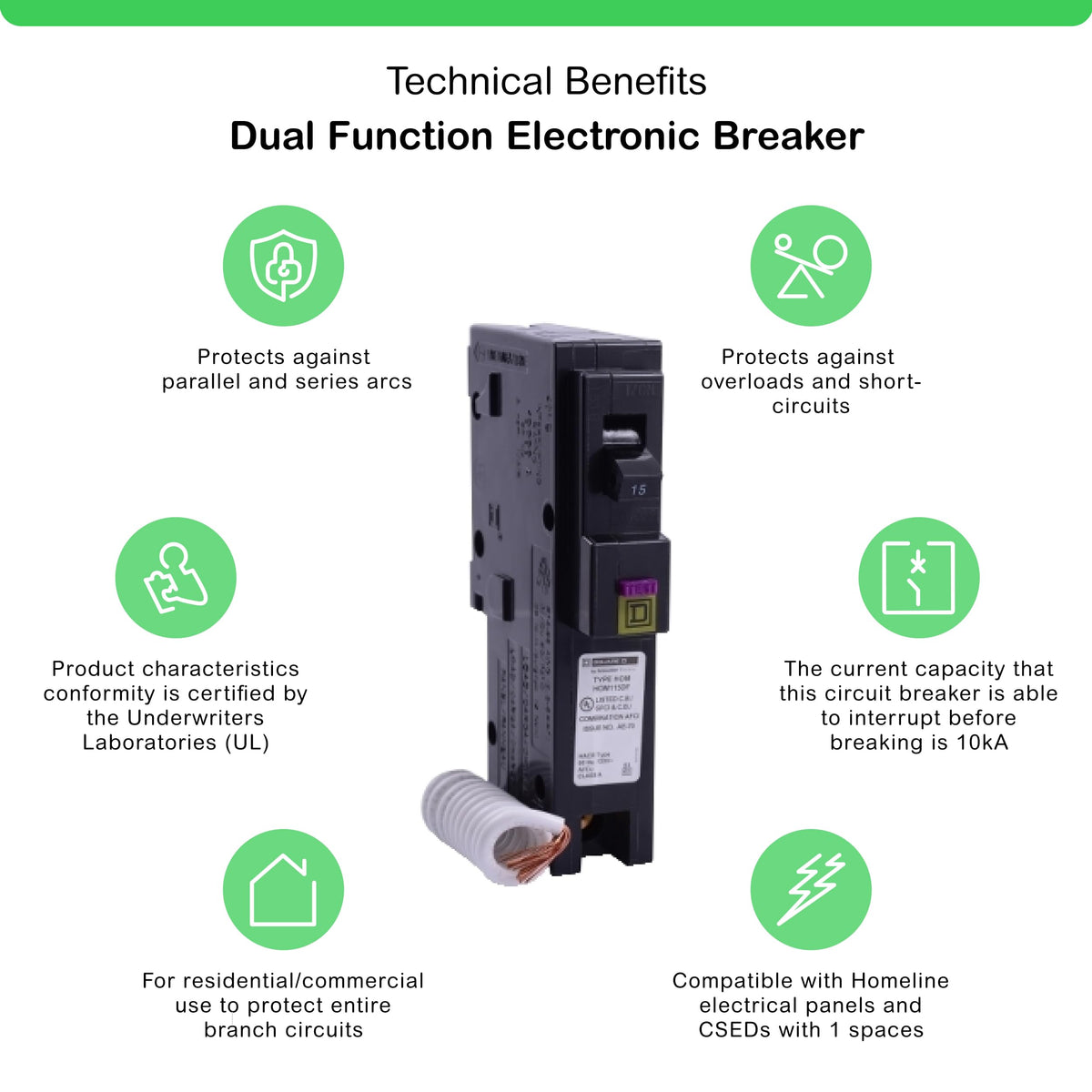

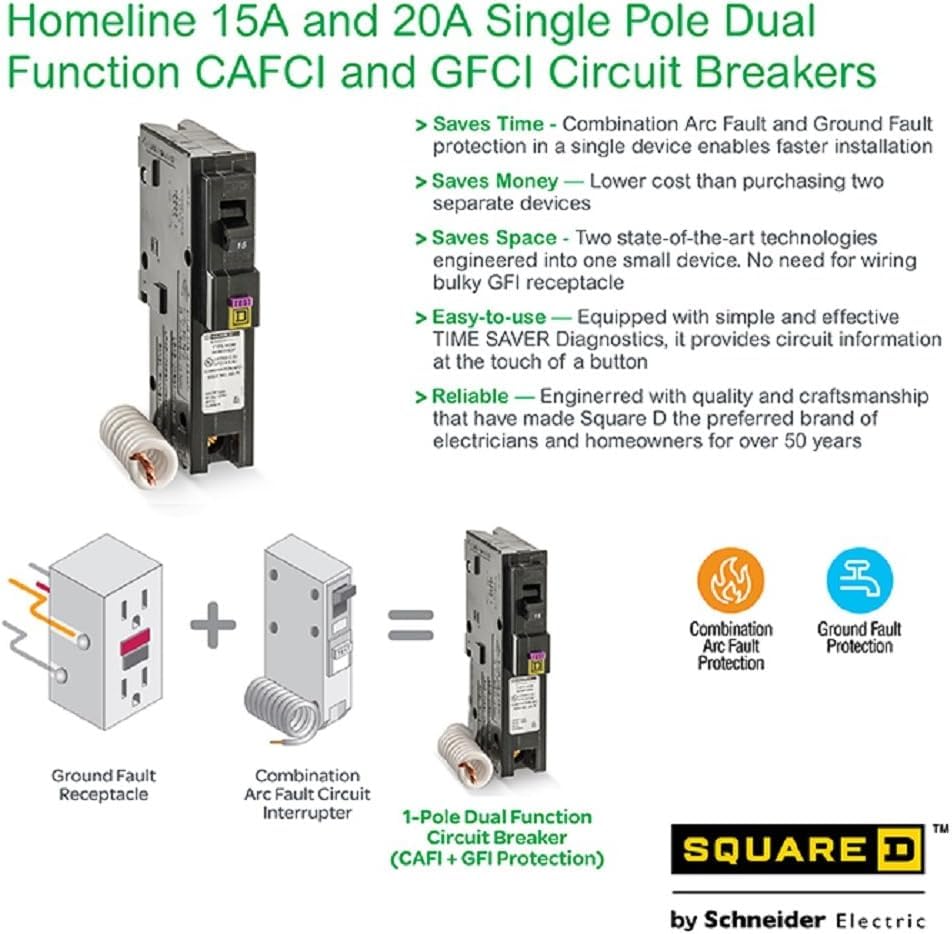

Dual-function protection: Combines AFCI and GFCI protection with thermal-magnetic overload and short-circuit protection.
-
Class A ground-fault protection: Intended for applications requiring personnel-level ground-fault protection.
-
Combination arc-fault protection: Detects qualifying arc-fault conditions on the protected branch circuit.
-
Homeline plug-in format: Designed for listed compatible Homeline load centers with a pigtail neutral.
Specifications
-
Manufacturer / model: Square D HOM115DF
-
Series: Homeline
-
Current / poles: 15 A, 1 pole, 1 phase
-
Voltage / interrupting rating: 120 VAC, 10 kA
-
Protection: Dual-function combination AFCI and Class A GFCI; thermal-magnetic trip
-
Mounting / terminal: Plug-in, screw-clamp load terminal with pigtail neutral
-
Conductor range: 14–8 AWG
-
Temperature rating: 104°F (40°C)
-
Certification: UL Listed; HACR rated
Common Applications
- 120 V residential branch circuits requiring both combination AFCI and Class A GFCI protection.
- Exact-model replacement in a listed compatible Homeline panel where HOM115DF is specified.
- Code-required protected circuits when the system design and local requirements call for this dual-function breaker.
