Overview

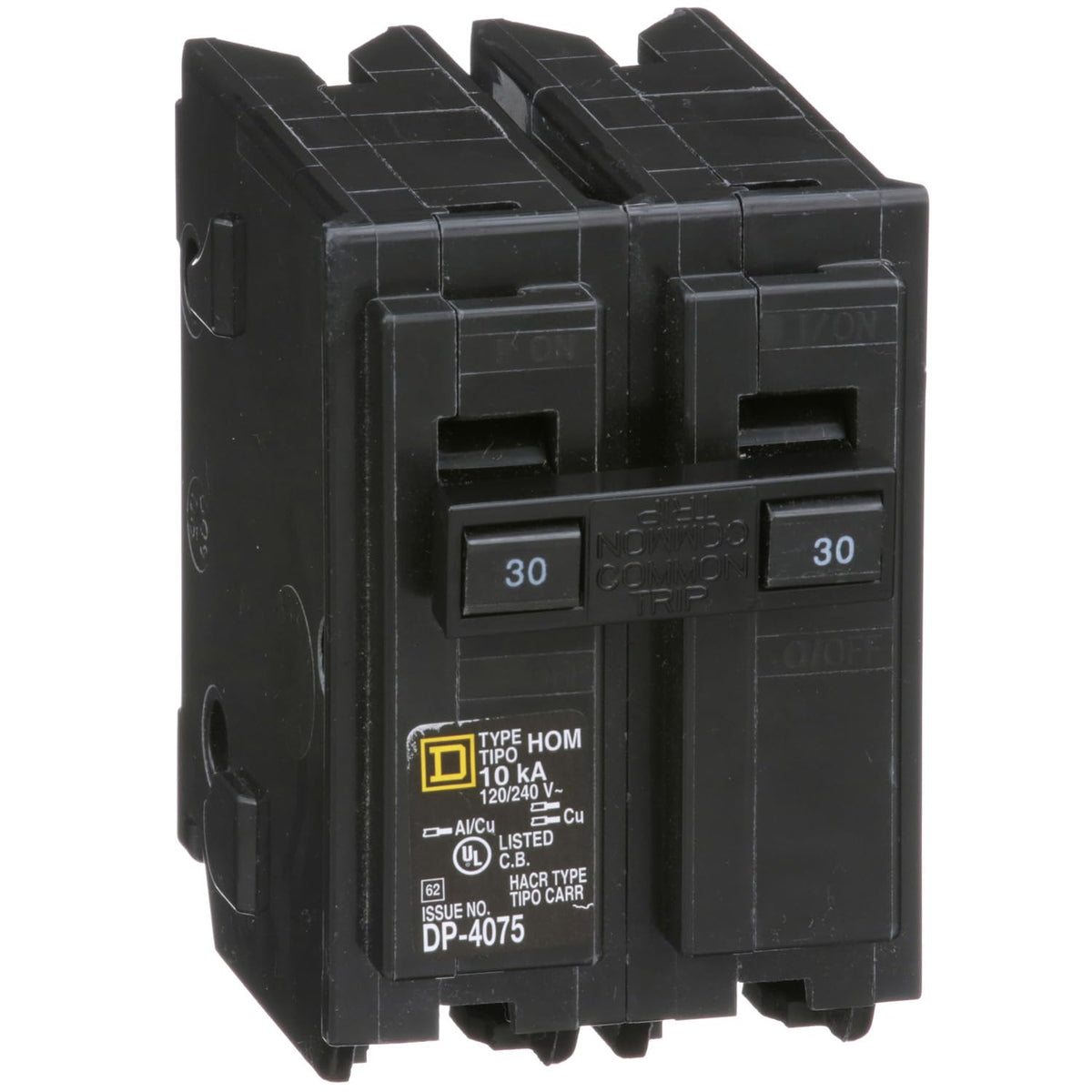

The Square D HOM230 is a 30-amp, two-pole Homeline circuit breaker for listed compatible Square D Homeline load centers. Its common-trip thermal-magnetic mechanism protects 120/240 VAC circuits, and the plug-in breaker is rated to interrupt 10 kA.

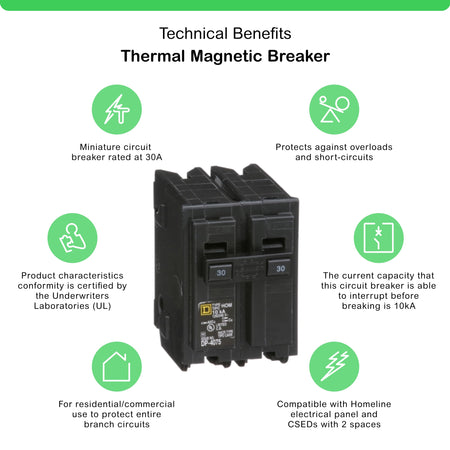

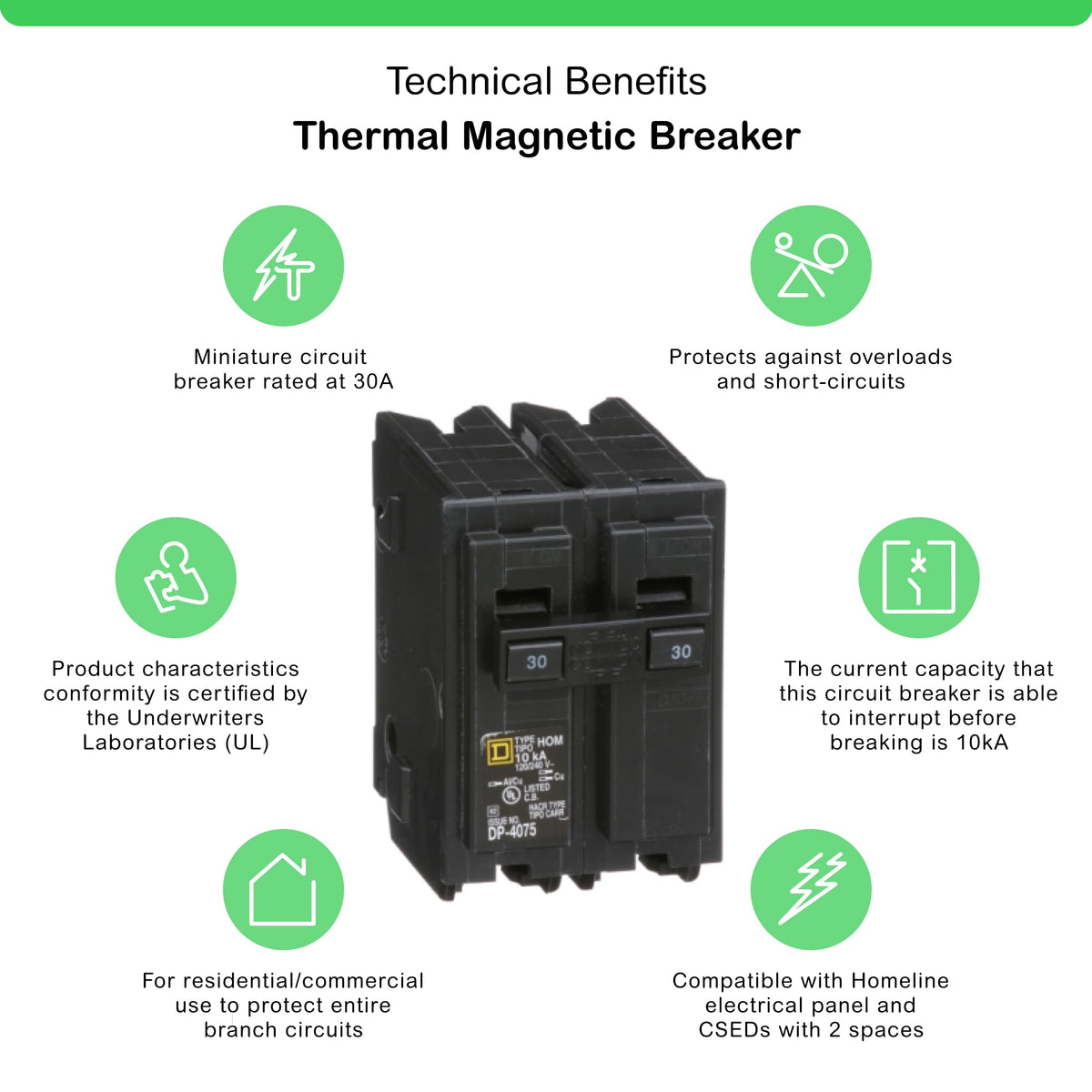

Key Features
-
Common-trip two-pole protection: Opens both poles together during a qualifying overload or short circuit.
-
Thermal-magnetic operation: Provides dependable overload and short-circuit protection.
-
Plug-in construction: Installs on the bus of listed compatible Homeline load centers.
-
30 A branch rating: Supports correctly sized two-pole circuits where HOM230 is specified.
Specifications
-
Manufacturer / model: Square D HOM230
-
Series: Homeline
-
Current / poles: 30 A, 2 poles, 1 phase
-
Voltage / interrupting rating: 120/240 VAC, 10 kA
-
Protection: Standard common-trip thermal-magnetic
-
Mounting / terminal: Plug-in, screw-clamp terminals
-
Conductor range: 14–8 AWG
-
Temperature rating: 104°F (40°C)
-
Certification: UL Listed; HACR rated
Common Applications
- 30 A two-pole branch circuits in listed compatible Homeline panels.
- Residential 120/240 V equipment circuits sized for a 30 A common-trip breaker.
- Exact-model replacement where panel labeling and system design specify HOM230.
