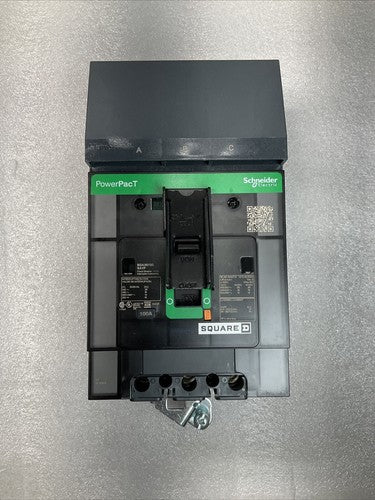

Square D BDA36100SAYP PowerPacT B 100A 3-Pole I-Line Circuit Breaker with 110-130V Shunt Trip and Padlock

In stock
SKU: BDA36100SAYP NEW $167
(0)
$503.50
Condition
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa

Overview

The Square D BDA36100SAYP is a PowerPacT B-frame, 100A, 3-pole thermal-magnetic circuit breaker for compatible I-Line distribution equipment. It is rated 600Y/347V AC with a 14 kA interrupting rating at 600Y/347V. The exact factory configuration adds an SA 110–130V AC, 50/60 Hz shunt trip and a YP fixed handle padlock attachment that can lock the handle OFF or ON.

Key Features

  • Safety: Thermal-magnetic overcurrent protection, a factory-installed shunt trip for remote opening, and a fixed padlock attachment support controlled circuit isolation.
  • Installation: I-Line mounting provides a compatible line-side connection, with load-side lugs accepting 14 AWG through 2/0 AWG aluminum or copper conductors.
  • Compatibility: Exact configured catalog number BDA36100SAYP; the SA and YP factory suffixes are part of the product identity and must be considered when matching a replacement.
  • Performance: Schneider lists 25 kA at 240V AC, 18 kA at 480V AC, and 14 kA at 600Y/347V AC for the base BDA36100 performance level.

Specifications

  • Manufacturer: Square D / Schneider Electric
  • Model: BDA36100SAYP
  • Series / Frame: PowerPacT B / B Frame
  • Current / Poles / Phase: 100A / 3-pole / 3-phase
  • Voltage: 600Y/347V AC, 50/60 Hz
  • Interrupting Rating: 14 kA at 600Y/347V AC
  • Trip Technology: Thermal-magnetic molded-case protection
  • Mounting / Connection: I-Line line connection; load lugs
  • Wire Range: 14 AWG–2/0 AWG aluminum or copper
  • Operating Temperature: -13°F to 158°F (-25°C to 70°C)
  • Standards: UL 489; CSA C22.2 No. 5
  • Factory Accessories: SA 110–130V AC shunt trip; YP fixed OFF/ON handle padlock attachment

Common Applications

  • Commercial and industrial Square D I-Line distribution panels.
  • Feeders requiring remote shunt-trip operation.
  • Equipment isolation where a fixed handle padlock attachment is specified.
  • Three-phase 600Y/347V systems requiring a 100A PowerPacT B-frame breaker.

Free shipping on eligible orders over $90. Our shipping cutoff is 3 PM, Monday–Friday. Available shipping services and delivery estimates are shown at checkout.

See our shipping policy for eligibility and exclusions. Orders are delivered; our warehouse is closed to the public.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.

Product Specifications

  • Brand Square D
  • Series PowerPacT B
  • Model BDA36100SAYP
  • Breaker Type Molded Breaker and Thermal Magnetic
  • Frame Type B Frame
  • Phase 3 Phase
  • Pole 3 Pole
  • Voltage 600Y/347V
  • Amp 100
  • AIC Interrupting Rating 14 kA
  • Terminal Connection Box Lugs
  • Minimum Wire Gauge 14 AWG
  • Maximum Wire Gauge 2/0 AWG
  • Mounting Type I-Line
  • Temperature Rating -13°F to 158°F (-25°C to 70°C)
  • Certifications UL 489 and CSA Certified
