Overview

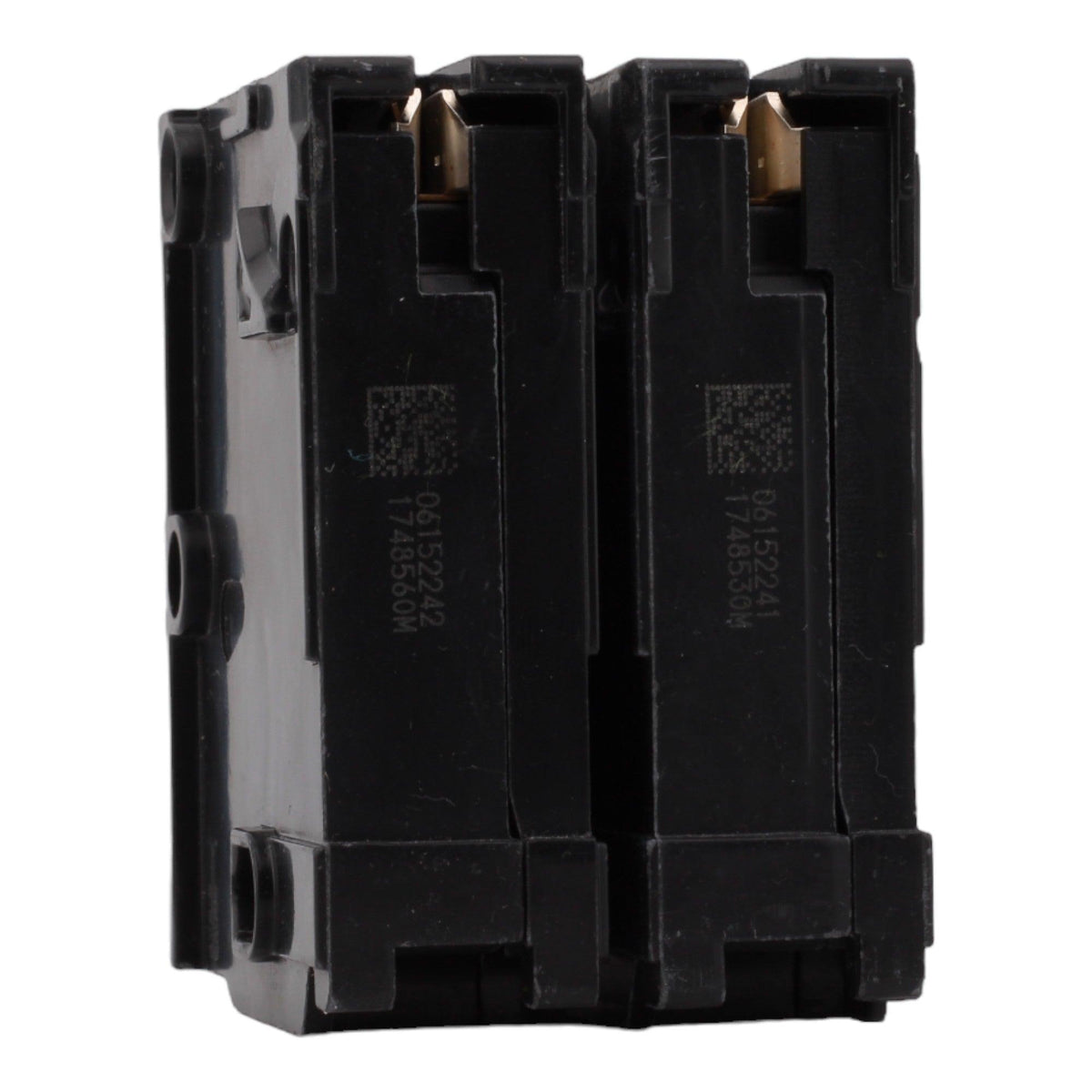

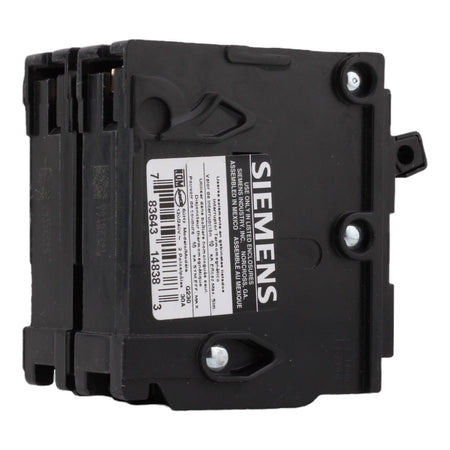

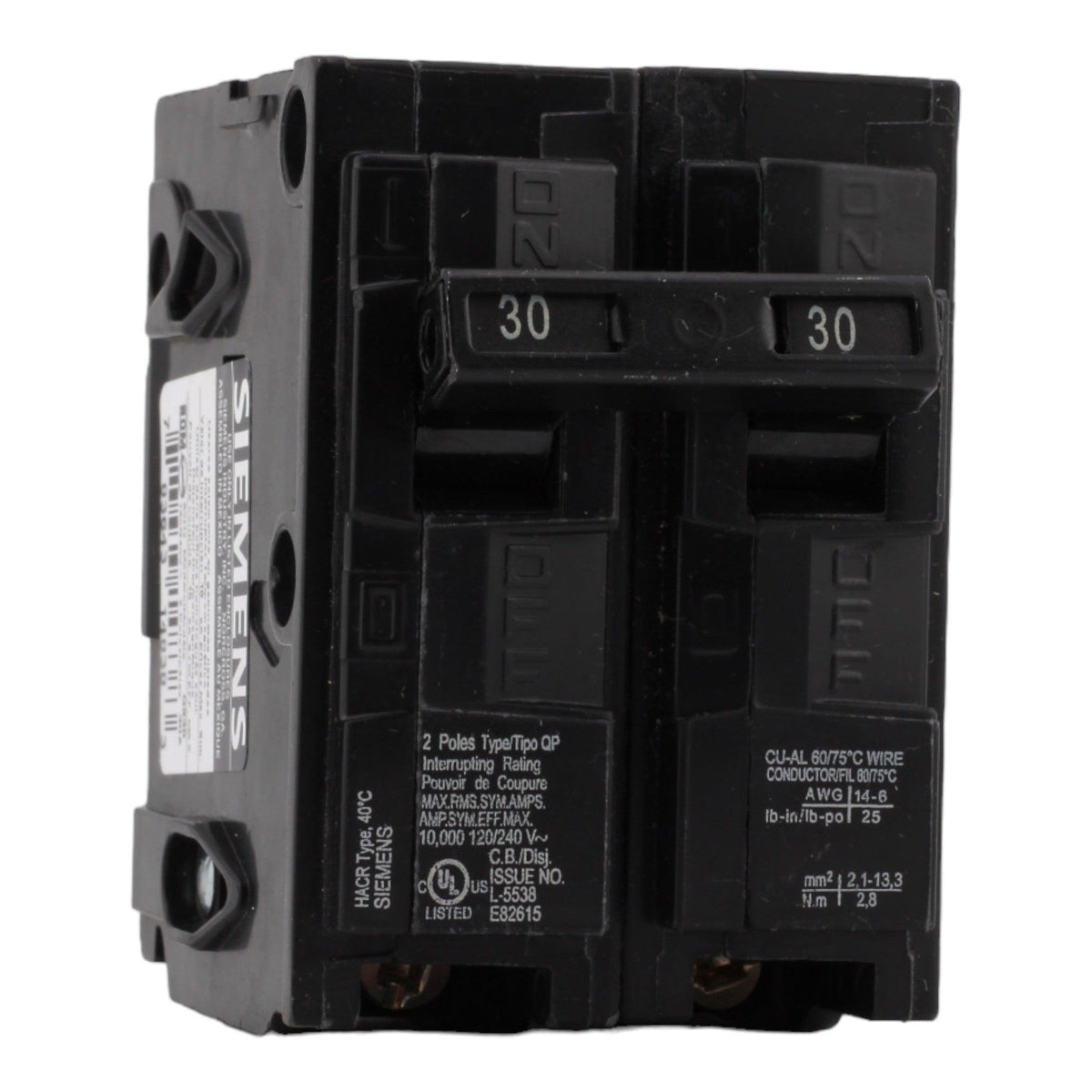

The Siemens Q230 is a 30 amp, 120/240 volt, two-pole Type QP thermal-magnetic circuit breaker for compatible Siemens load centers. Its common-trip two-pole construction disconnects both conductors together and provides a 10 kA interrupting rating.
Key Features
-
Protection: Thermal-magnetic operation responds to sustained overloads and short-circuit faults.
-
Common trip: Both poles trip together for a two-pole branch circuit.
-
Installation: Plug-in Type QP construction with box-lug load terminals.
-
Standards: UL 489 and CSA references; HACR rated.
Specifications
- Manufacturer part number: Q230
- Series / frame: QP
- Current rating: 30 A
- Voltage rating: 120/240 V AC
- Poles / phase: 2 poles / 1 phase
- Protection: thermal-magnetic, common trip
- Interrupting rating: 10 kA
- Mounting: plug-in
- Load terminals: box lugs
- Conductor range: 14–6 AWG
- Temperature calibration: 40°C
Common Applications
- Residential 240 V branch circuits such as water heaters, HVAC equipment, and other manufacturer-specified loads.
- 120/240 V multiwire or two-pole circuits requiring simultaneous disconnection.
- Compatible Siemens load centers listed for Type QP breakers.
- Exact-catalog replacement for Siemens Q230.
