Overview

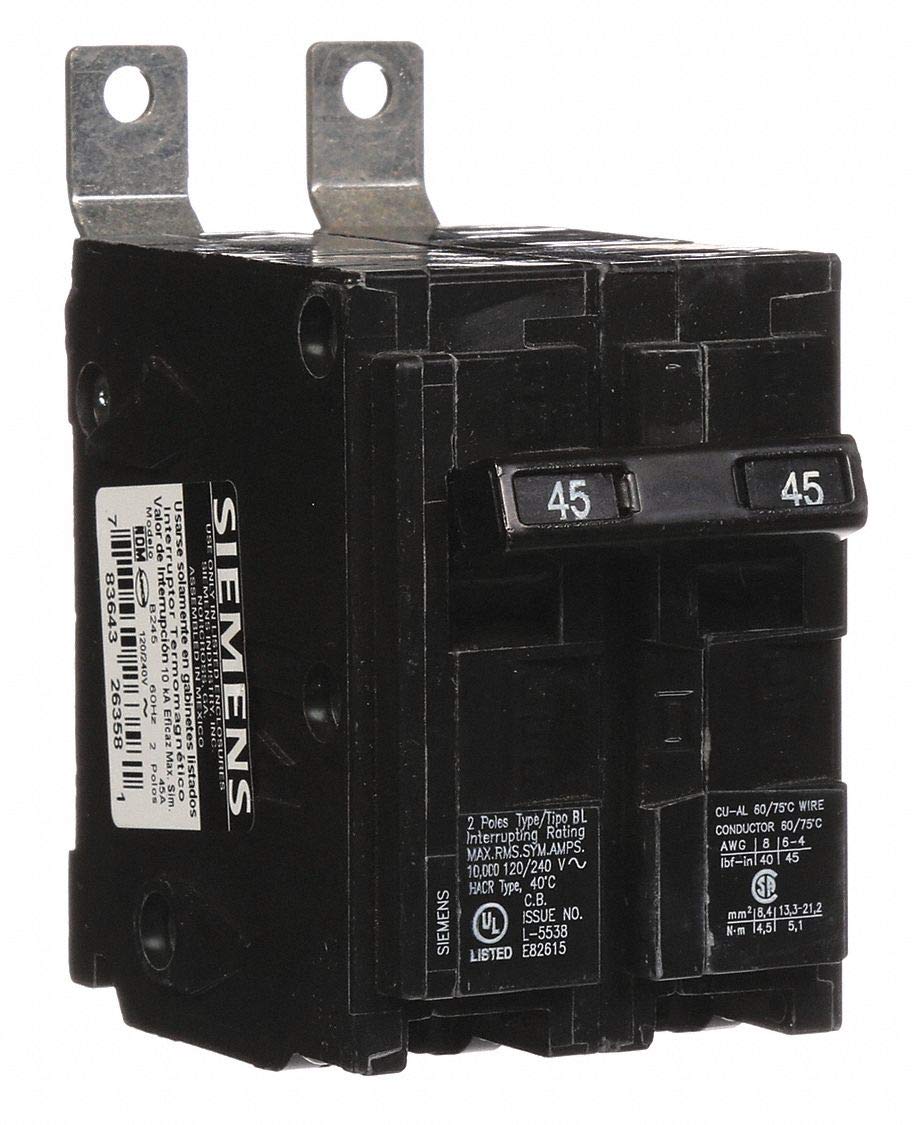

The Siemens B245 is a 45 A, 120/240 V AC, two-pole Type BL bolt-on circuit breaker in the Siemens BL 125 A frame family. It provides thermal-magnetic overload and short-circuit protection with a 10 kA interrupting rating for compatible Siemens panelboards.
Key Features
-
Thermal-magnetic protection: Provides common-trip overload and short-circuit protection for two-pole circuits.
-
Bolt-on mounting: Secures to compatible Siemens panelboard bus equipment for a fixed connection.
-
BL 125 A frame: The exact B245 belongs to the Siemens BL 125 A frame family.
-
Listed panelboard application: Use only in equipment whose labeling accepts Type BL breakers.
Specifications
-
Manufacturer / model: Siemens B245
-
Series / frame: BL / BL 125 A frame
-
Current / voltage: 45 A / 120/240 V AC
-
Poles / phase: 2 poles / single phase
-
Protection: Thermal magnetic; common trip
-
Interrupting rating: 10 kA
-
Mounting / terminal: Bolt-on; load screw/box lug
-
Conductor range: #8–6 AWG copper; #8–4 AWG aluminum
-
Reference temperature: 104°F (40°C)
-
Certifications: UL 489; CSA certified; HACR rated
Common Applications
- Compatible Siemens panelboards requiring the exact B245 or Type BL 45 A two-pole breaker.
- 120/240 V feeders and equipment circuits requiring common-trip two-pole protection.
- Like-for-like replacement in manufacturer-listed BL panelboard equipment.
