Overview

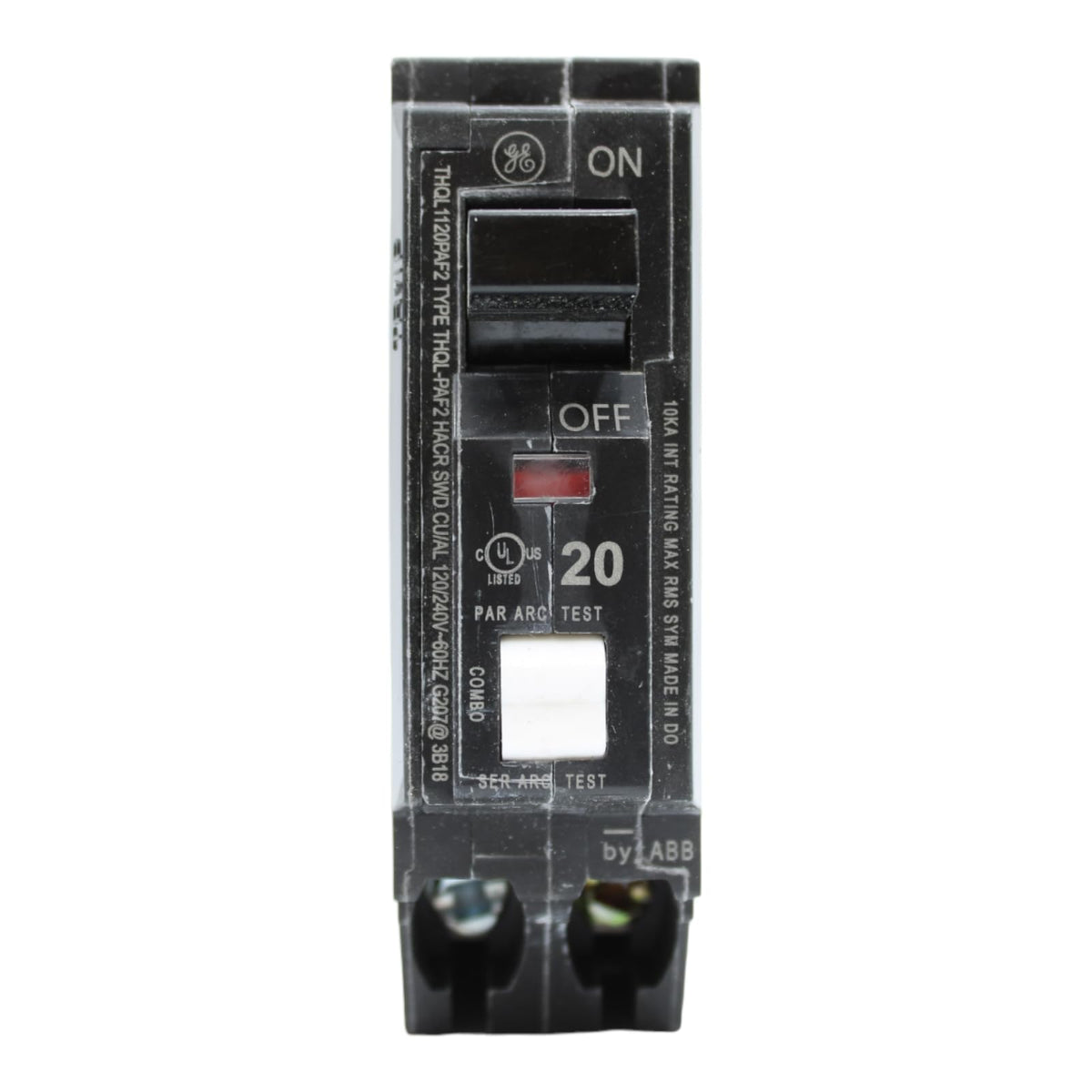

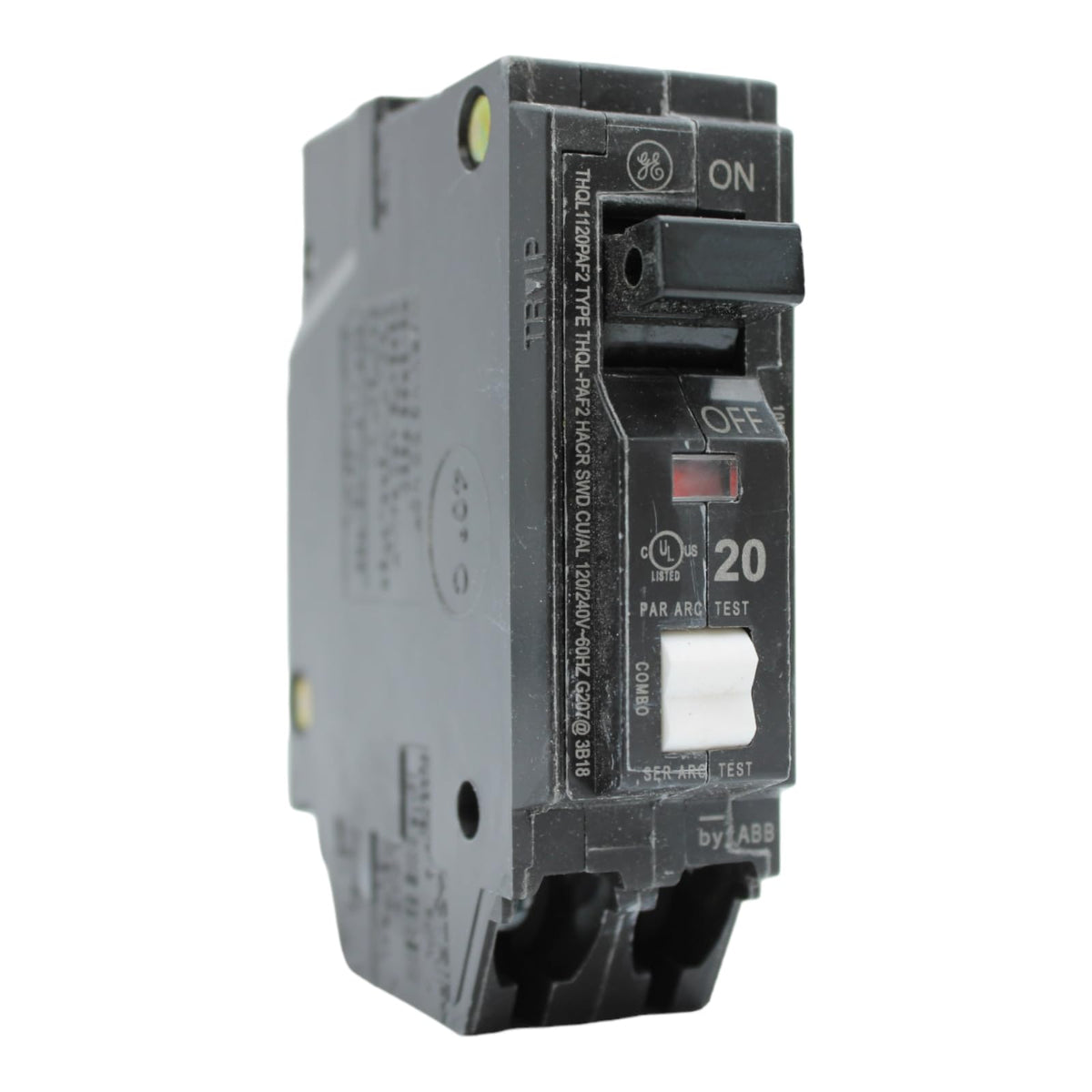

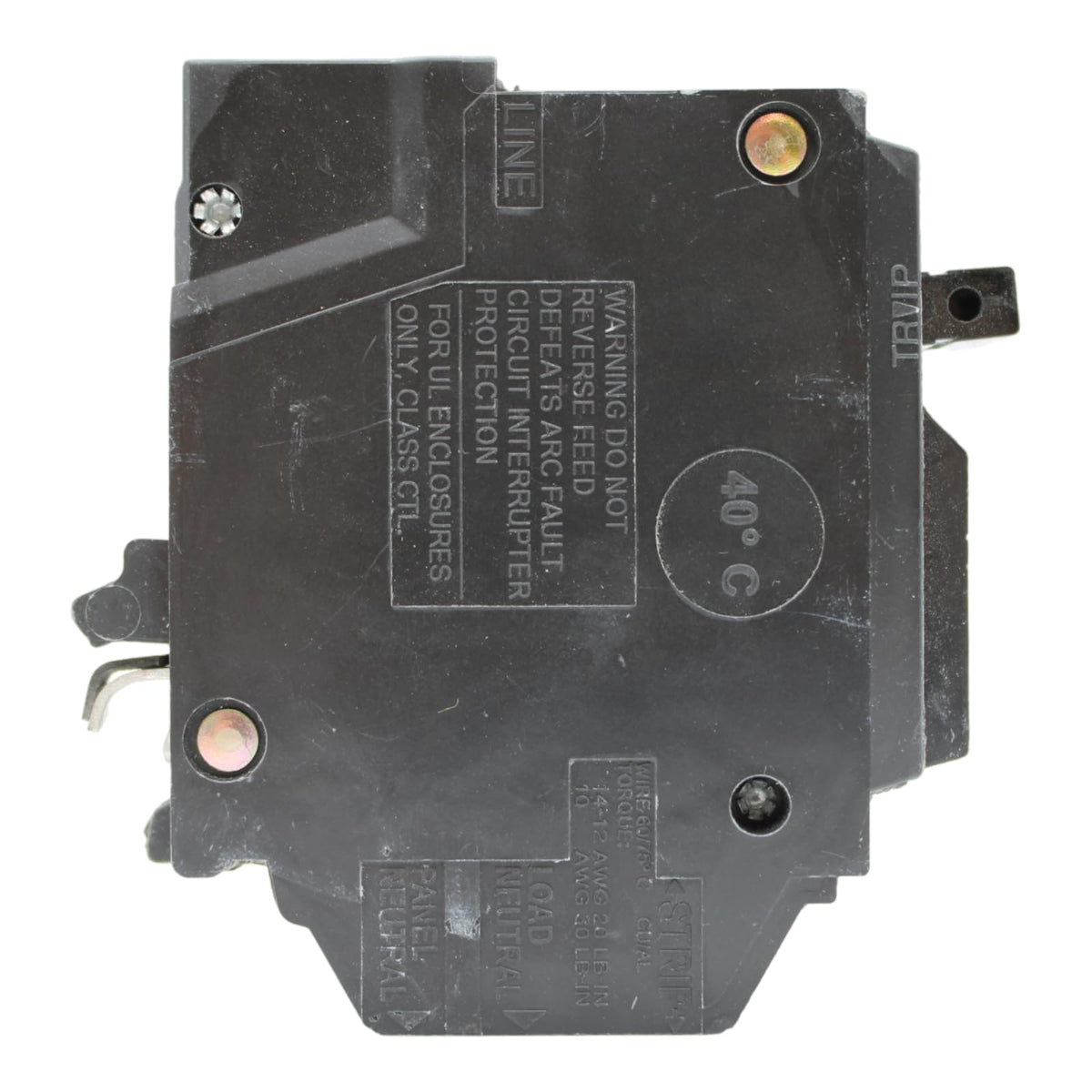

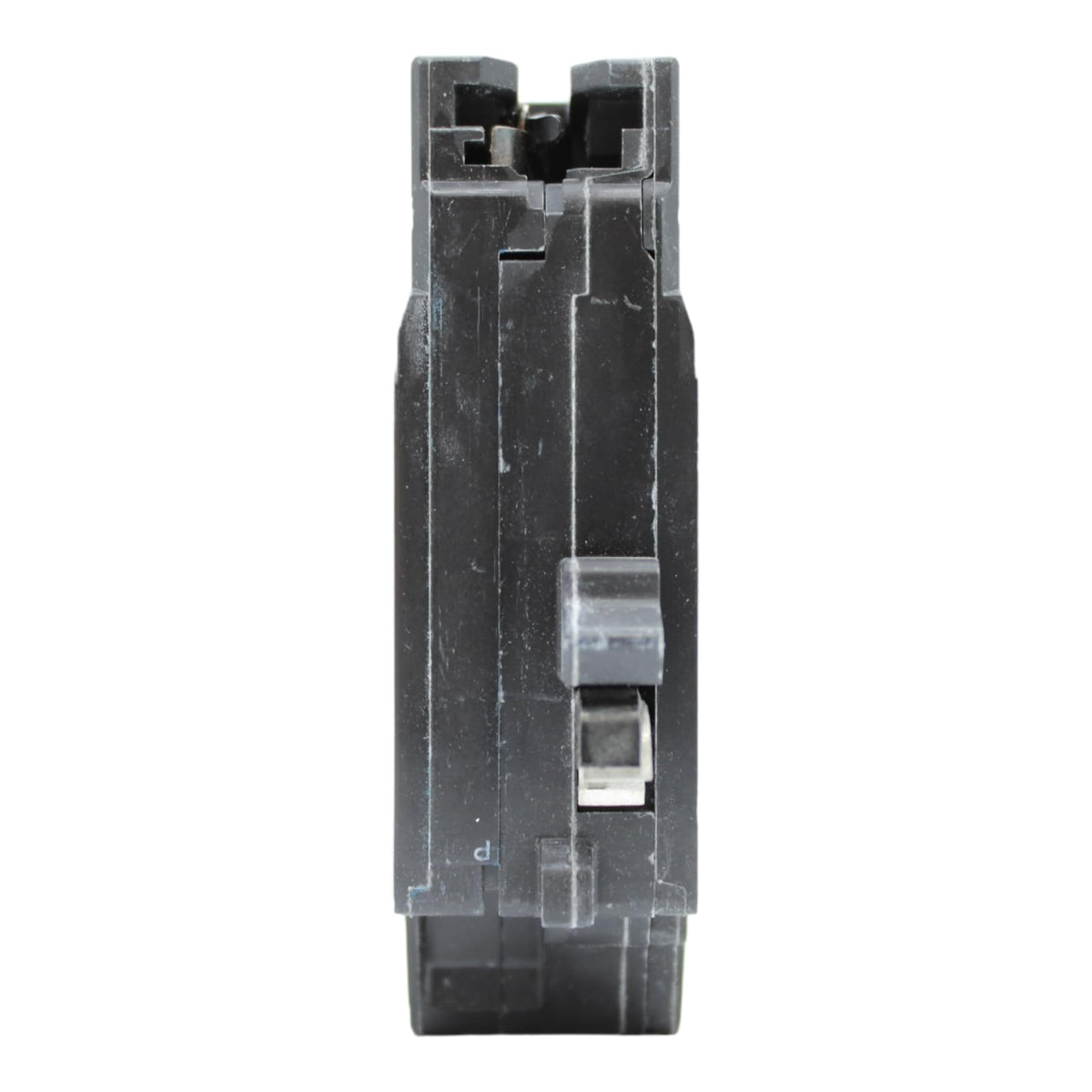

The GE THQL1120PAF2 is a 20 A, single-pole Q-Line combination arc-fault circuit interrupter for compatible plug-on-neutral load centers. It protects a 120 V branch on a 120/240 V AC system, combines AFCI sensing with thermal-magnetic overcurrent protection, and has a 10 kA interrupting rating.
Key Features
-
Combination AFCI protection: Detects supported series and parallel arcing conditions while retaining overload and short-circuit protection.
-

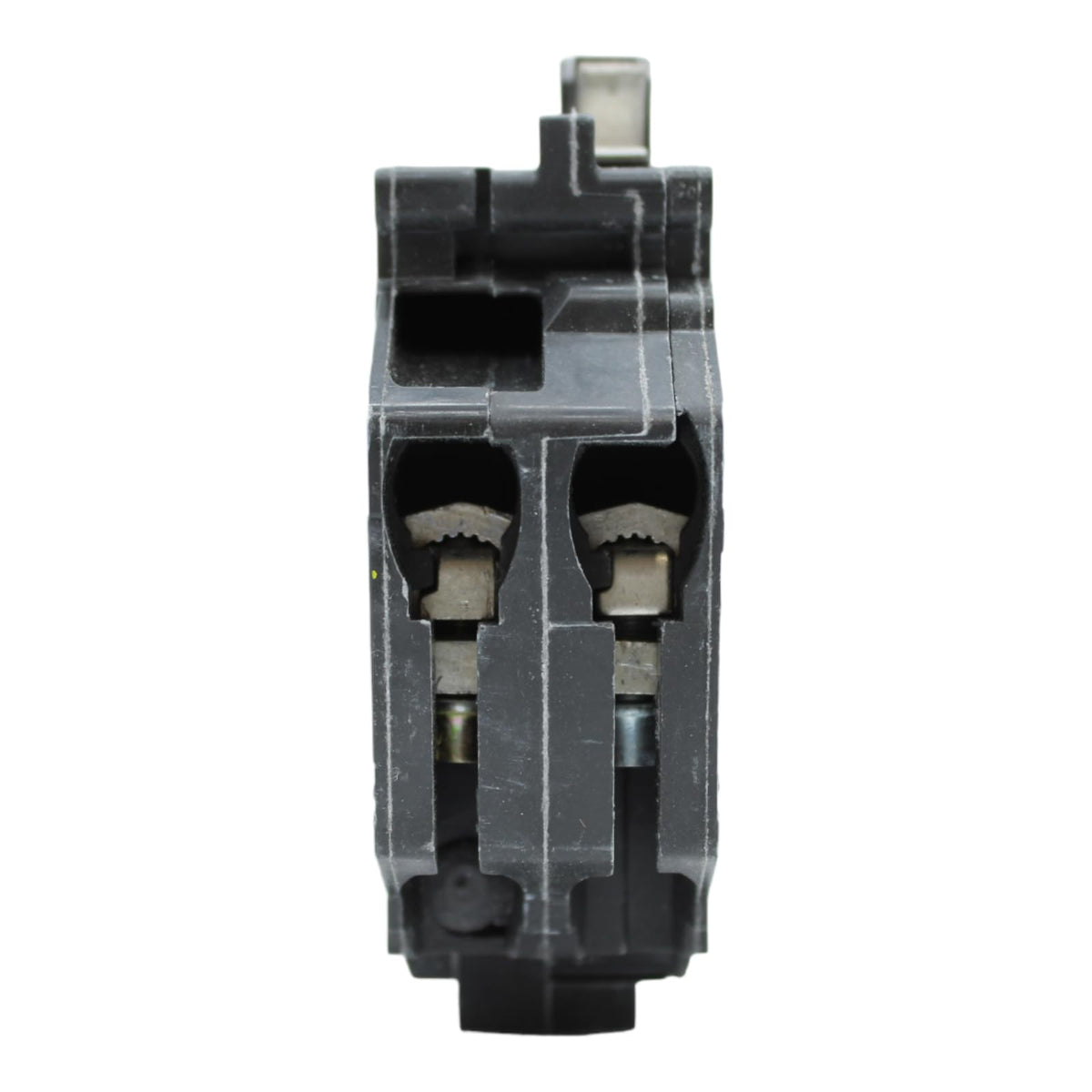

Plug-on-neutral installation: Connects directly to compatible neutral hardware without a separate pigtail and uses a load-side box/screw lug.
-
Q-Line compatibility: Use only in manufacturer-listed Q-Line plug-on-neutral load centers accepting THQL1120PAF2.
-
Verified branch rating: 20 A, one pole, 120 V branch use on a 120/240 V system, with 10 kA interrupting capacity.
Specifications
-
Manufacturer / model: GE THQL1120PAF2
-
Series: Q-Line
-
Current / voltage: 20 A; 120 V branch / 120/240 V system
-
Poles / phase: 1 pole / single phase
-
Protection: Combination AFCI; thermal magnetic
-
Interrupting rating: 10 kA
-
Mounting / terminals: Plug-in; plug-on neutral; load box/screw lug
-
Conductor range: #14–8 AWG
-
Reference temperature: 104°F (40°C)
-
Standards / markings: UL 489; UL 1699; HACR; SWD
Common Applications
- Compatible Q-Line plug-on-neutral load centers requiring the exact THQL1120PAF2 breaker.
- 20 A dwelling branch circuits requiring combination arc-fault protection.
- Like-for-like replacement in manufacturer-listed Q-Line equipment.
