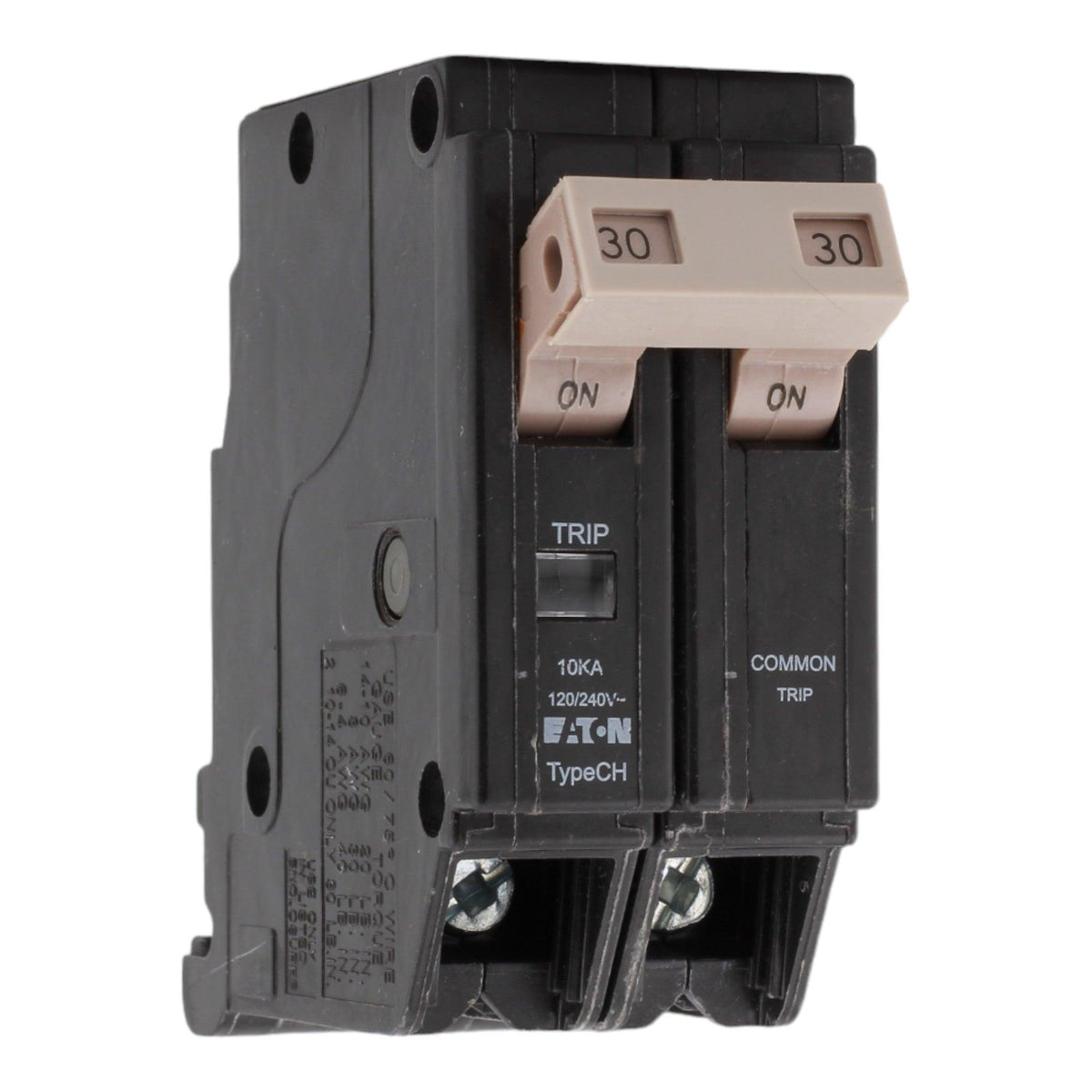

Eaton CH CHF230 30A 2P 120/240V Standard Circuit Breaker - product image 1

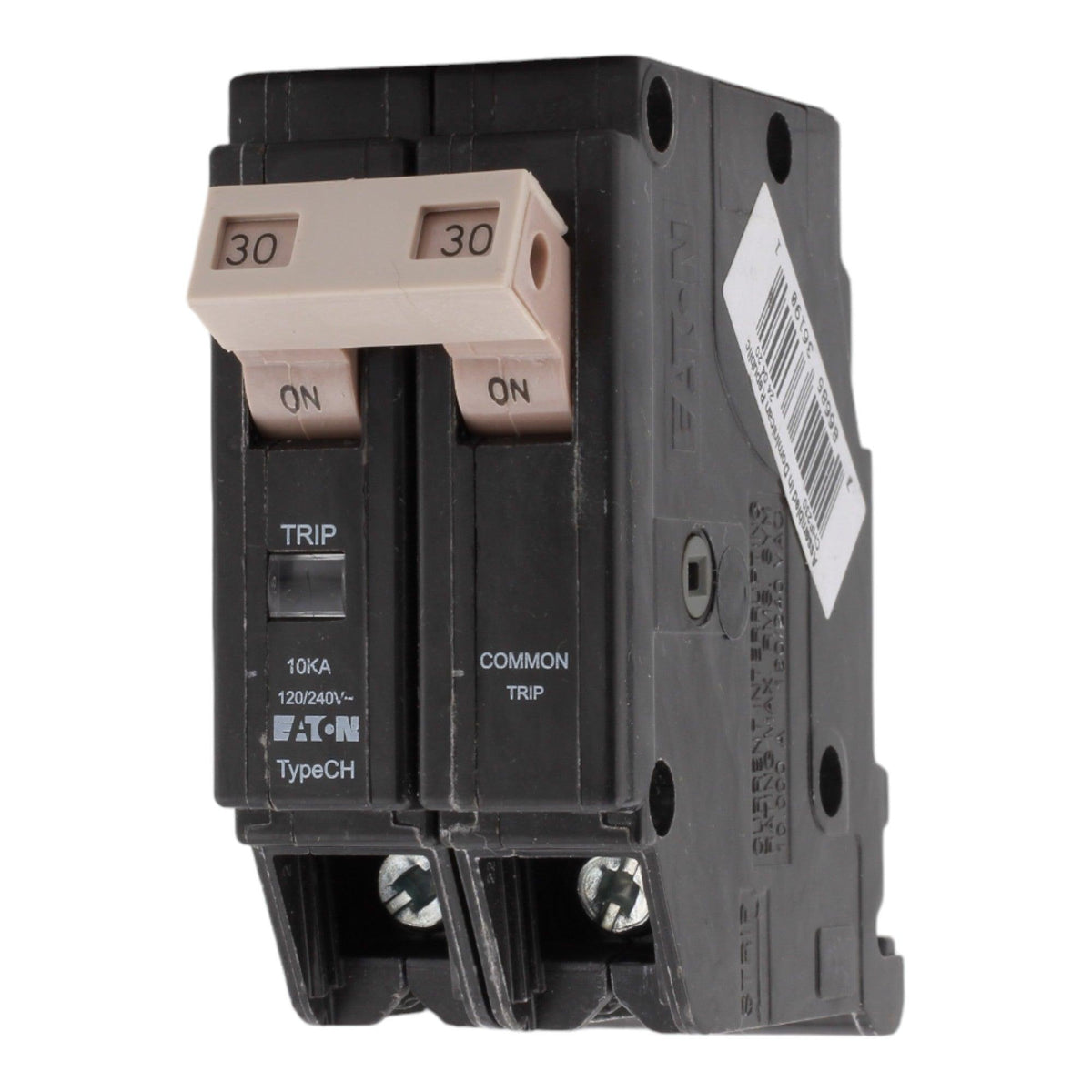

Eaton CH CHF230 30A 2P 120/240V Standard Circuit Breaker - product image 2

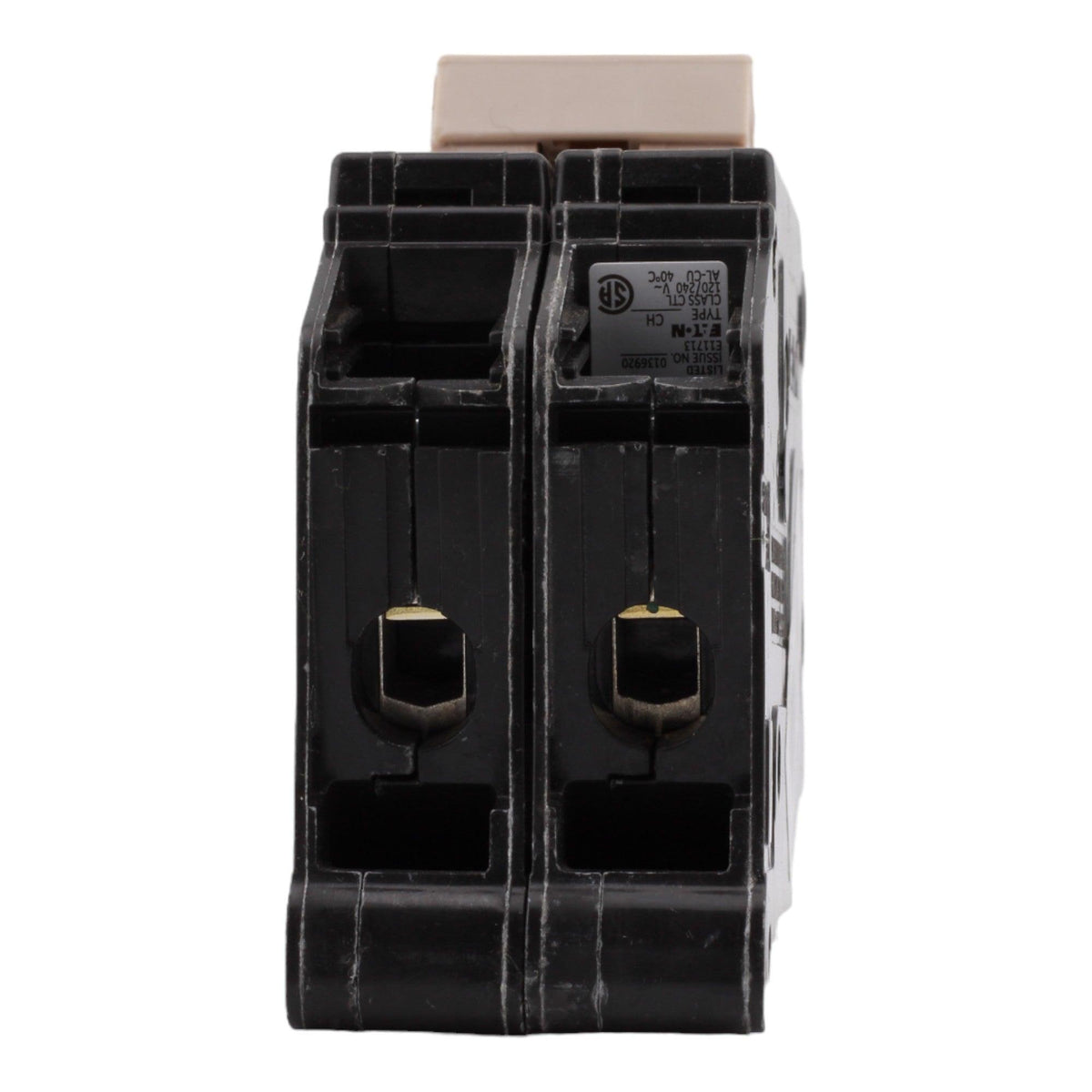

Eaton CH CHF230 30A 2P 120/240V Standard Circuit Breaker - product image 3

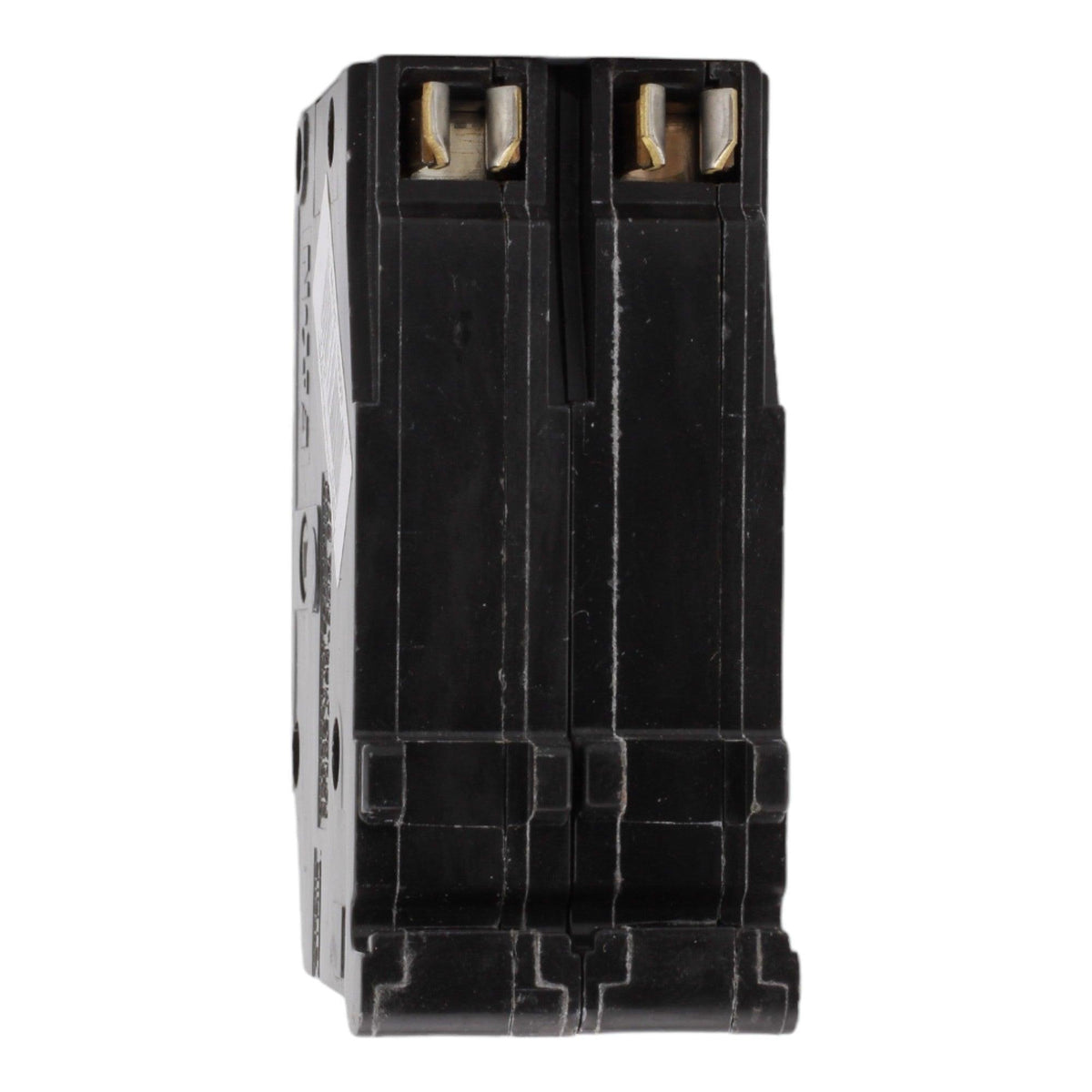

Eaton CH CHF230 30A 2P 120/240V Standard Circuit Breaker - product image 4

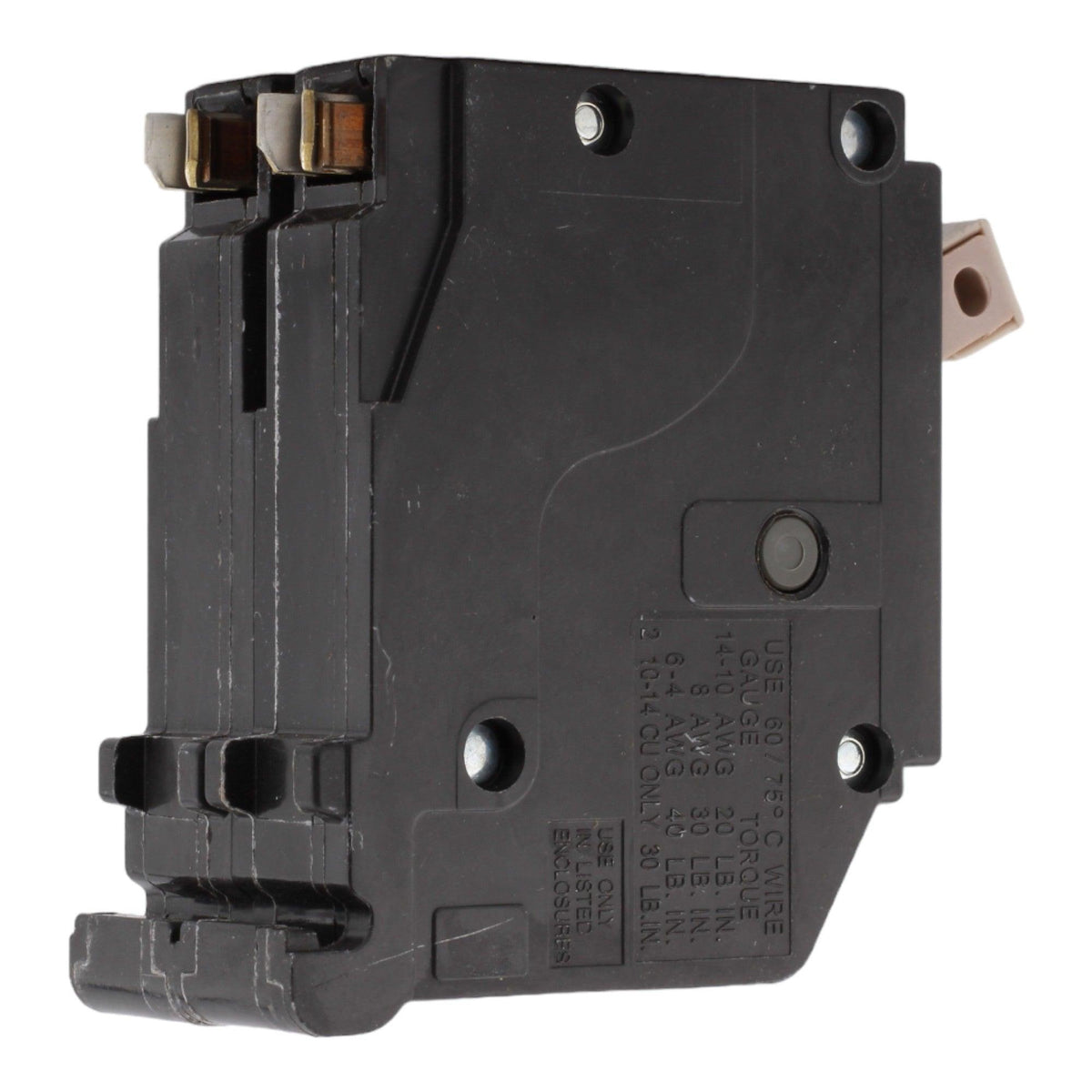

Eaton CH CHF230 30A 2P 120/240V Standard Circuit Breaker - product image 5

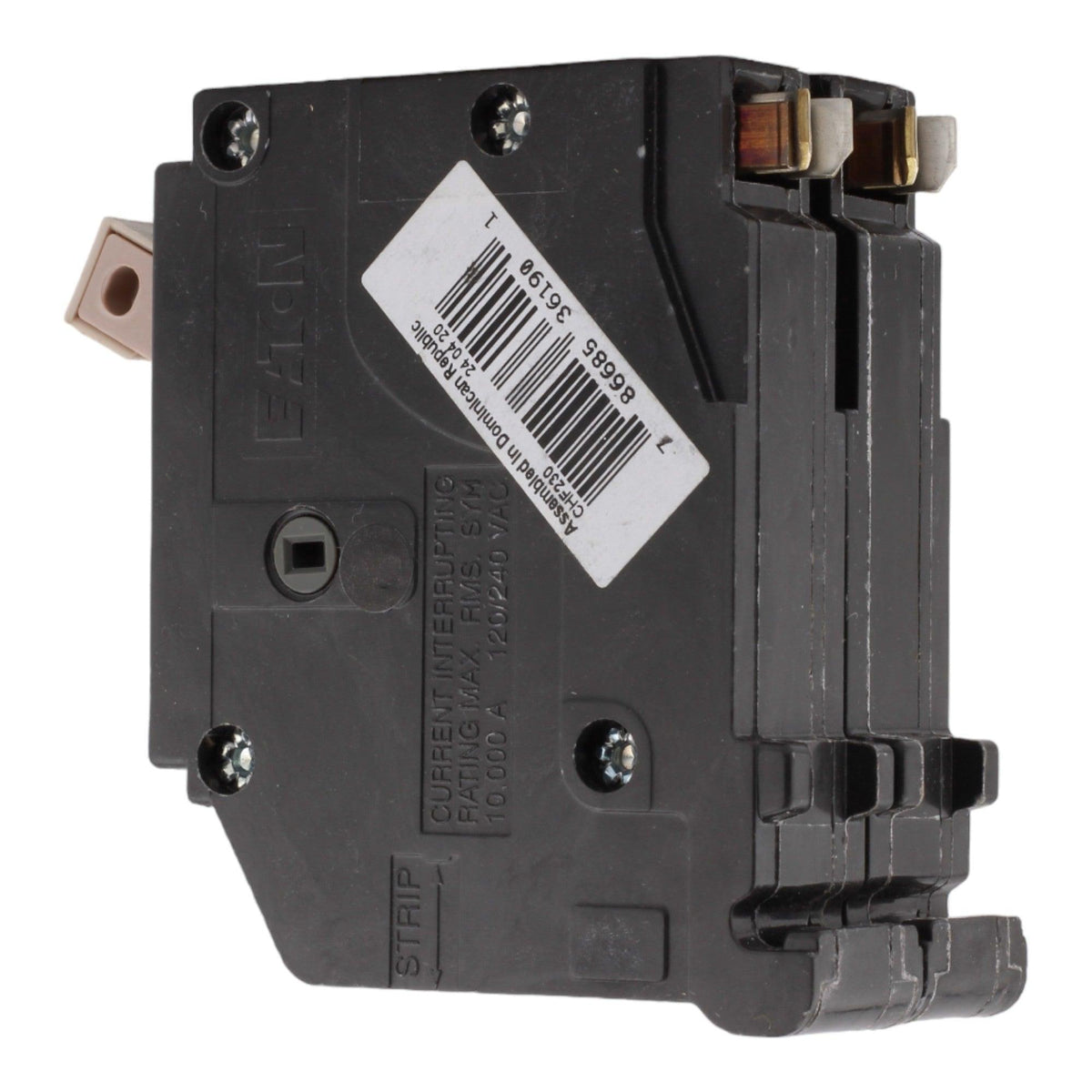

Eaton CH CHF230 30A 2P 120/240V Standard Circuit Breaker - product image 6
Eaton CH CHF230 30A 2P 120/240V Standard Circuit Breaker - product image 1
Eaton CH CHF230 30A 2P 120/240V Standard Circuit Breaker - product image 2
Eaton CH CHF230 30A 2P 120/240V Standard Circuit Breaker - product image 3
Eaton CH CHF230 30A 2P 120/240V Standard Circuit Breaker - product image 4
Eaton CH CHF230 30A 2P 120/240V Standard Circuit Breaker - product image 5
Eaton CH CHF230 30A 2P 120/240V Standard Circuit Breaker - product image 6

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton CH CHF230 30A 2P 120/240V Standard Circuit Breaker

Out of stock
SKU: CHF230 NEW
(0)
$15.00
-25% $20.00 $15.00
Condition
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa

Overview

The Eaton CHF230 is a 30 A, two-pole Type CHF thermal-magnetic circuit breaker for approved Eaton Type CH loadcenters. It is rated 120/240 V with a 10 kAIC interrupting rating and uses a common-trip mechanism with a visible trip flag.

Key Features

  • Protection: Common-trip thermal-magnetic operation disconnects both poles when an overcurrent occurs.
  • Trip indication: Eaton's trip flag helps identify a tripped breaker in the panel.
  • Installation: The 3/4-inch Type CHF format requires two 3/4-inch panel spaces in compatible Type CH loadcenters.
  • Compliance: UL 489 certified and HACR rated for appropriate heating, air-conditioning, and refrigeration circuits.

Specifications

  • Catalog number: CHF230
  • Current rating: 30 A
  • Poles: 2, common trip
  • Voltage rating: 120/240 V
  • Interrupting rating: 10 kAIC
  • Trip technology: Thermal magnetic with trip flag
  • Mounting: Type CHF 3/4-inch plug-on; two panel spaces
  • Wire range: One #14-8 AWG or two #14-10 AWG Cu/Al conductors
  • Certification: UL 489; HACR rated

Common Applications

  • 30 A two-pole branch circuits in compatible Eaton Type CH loadcenters.
  • HVAC and refrigeration equipment circuits when the equipment nameplate, conductor sizing, and local electrical code call for a 30 A HACR-rated common-trip breaker.
  • Replacement of an exact CHF230 where Type CHF breakers and two 3/4-inch spaces are specified.

Free shipping on eligible orders over $90. Our shipping cutoff is 3 PM, Monday–Friday. Available shipping services and delivery estimates are shown at checkout.

See our shipping policy for eligibility and exclusions. Orders are delivered; our warehouse is closed to the public.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.

Product Specifications

  • Brand Eaton
  • Series CHF
  • Model CHF230
  • Breaker Type Thermal Magnetic and Regular Breaker
  • Frame Type NA
  • Phase 1 Phase
  • Pole 2 Pole
  • Voltage 120/240V
  • Amp 30
  • AIC Interrupting Rating 10 kA
  • Terminal Connection Box Lugs
  • Minimum Wire Gauge 14 AWG
  • Maximum Wire Gauge 8 AWG
  • Mounting Type Plug-ON,IN
  • Temperature Rating 104°F (40°C)
  • Certifications UL Listed and HACR Rated
