Overview

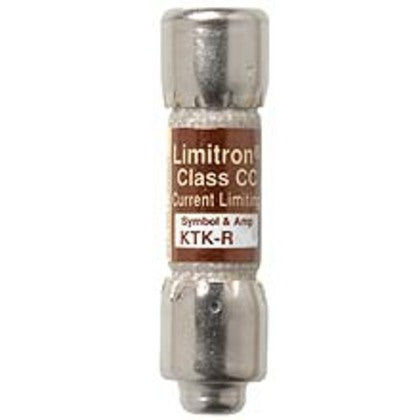

The Eaton Bussmann KTK-R-10 is a 10 A, 600 V AC Class CC fuse for industrial controls, machinery, lighting, capacitors, and distribution circuits. Eaton identifies this exact MPN as a fast-acting, dual-element, current-limiting rejection-style fuse with a 200 kA interrupting rating.
Key Features
-
Protection: Fast-acting current limitation helps reduce fault energy in control and branch circuits.
-
Capacity: Rated 10 A at 600 V AC with a 200 kA interrupting rating.
-
Fit: Class CC rejection-style cartridge with ferrule-end connections for compatible Class CC fuse holders.
-
Compliance: UL Listed, CSA Certified, CE Marked, and RoHS compliant according to Eaton.
Specifications
-
Catalog number: KTK-R-10
-
Sellable quantity: 1 fuse
-
Current and voltage: 10 A, 600 V AC
-
Fuse class and type: Class CC, fast-acting, current-limiting, dual-element cartridge fuse
-
Interrupting rating: 200 kAIC
-
Connection: Ferrule end × ferrule end, rejection style
-
Size: 13/32 in × 1-1/2 in (10.3 mm × 38.1 mm)
-
Indication: Non-indicating
-
Compliance: UL Listed, CSA Certified, CE Marked, RoHS compliant
Common Applications
- Industrial control panels and machinery circuits requiring Class CC protection.
- Street-lighting and general-lighting circuits.
- Capacitor and distribution circuits within the manufacturer ratings.
