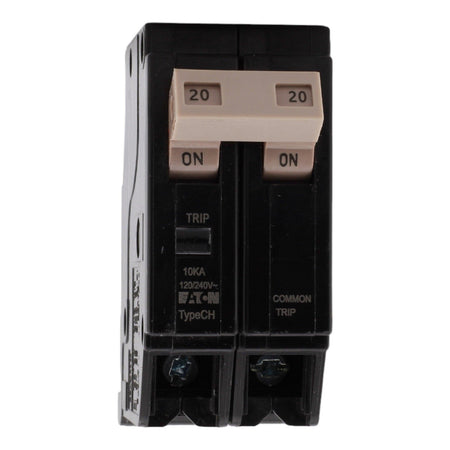

Eaton CH CHF220 20A 2P 120/240V Thermal-Magnetic Circuit Breaker - product image 2

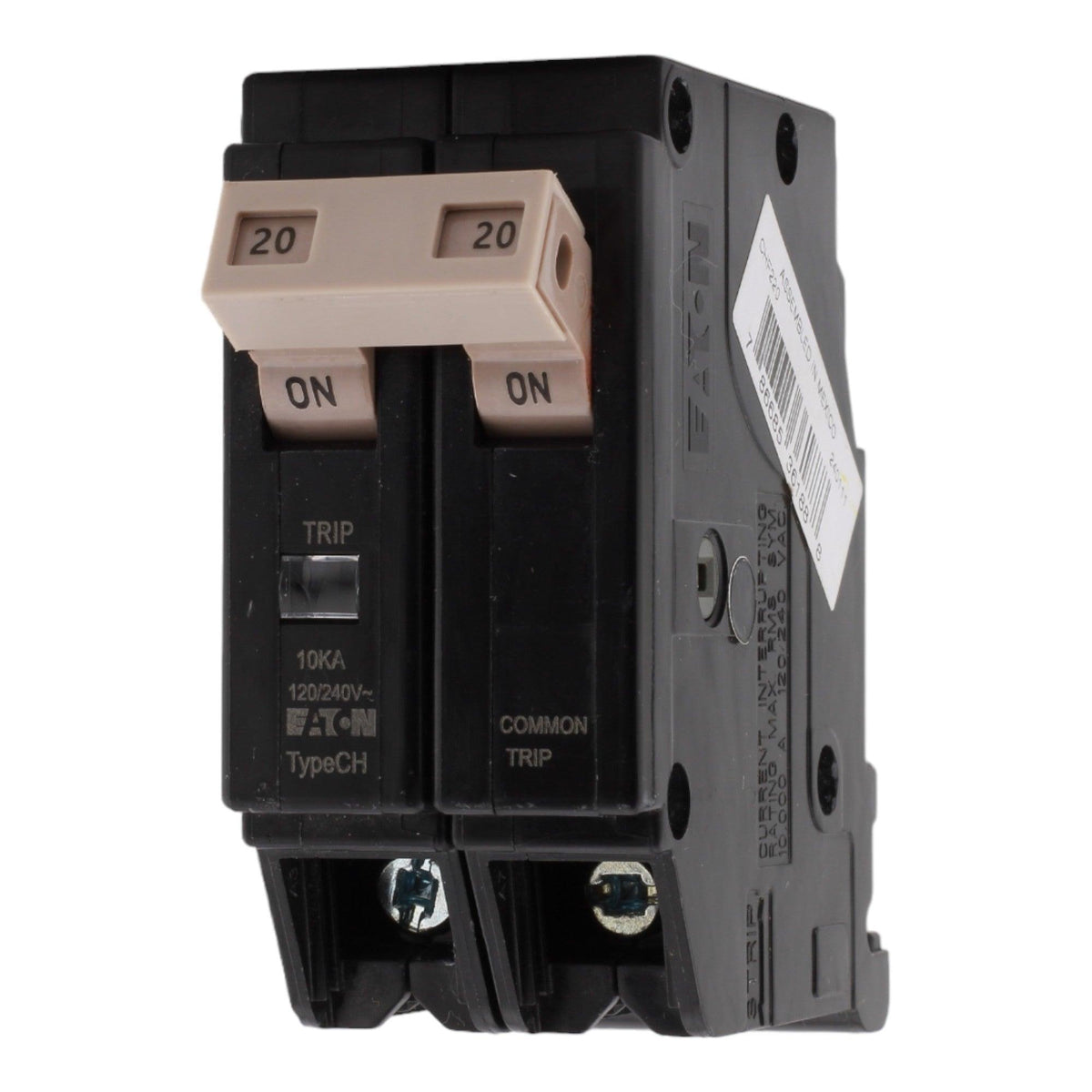

Eaton CH CHF220 20A 2P 120/240V Thermal-Magnetic Circuit Breaker - product image 3
Eaton CH CHF220 20A 2P 120/240V Thermal-Magnetic Circuit Breaker - product image 4

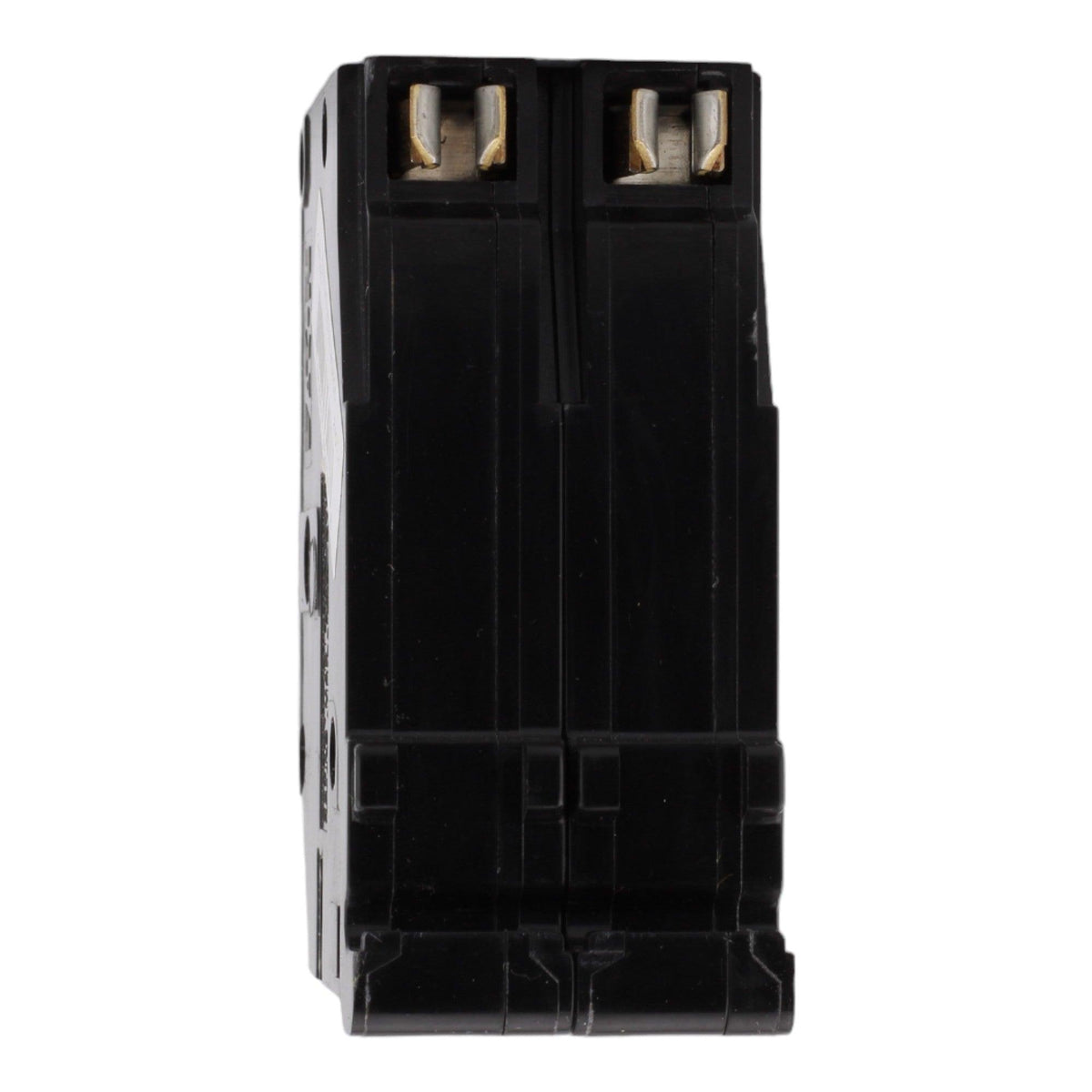

Eaton CH CHF220 20A 2P 120/240V Thermal-Magnetic Circuit Breaker - product image 5

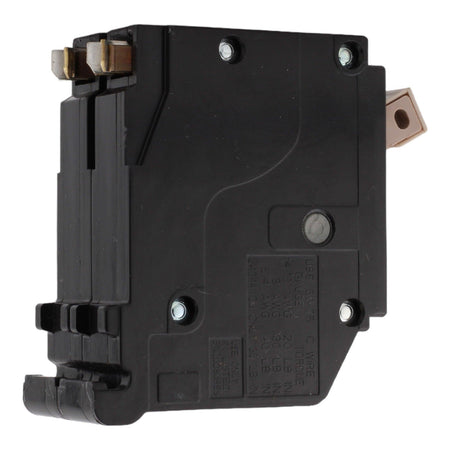

Eaton CH CHF220 20A 2P 120/240V Thermal-Magnetic Circuit Breaker - product image 6
Eaton CH CHF220 20A 2P 120/240V Thermal-Magnetic Circuit Breaker - product image 7
Eaton CH CHF220 20A 2P 120/240V Thermal-Magnetic Circuit Breaker - product image 1
Eaton CH CHF220 20A 2P 120/240V Thermal-Magnetic Circuit Breaker - product image 2
Eaton CH CHF220 20A 2P 120/240V Thermal-Magnetic Circuit Breaker - product image 3
Eaton CH CHF220 20A 2P 120/240V Thermal-Magnetic Circuit Breaker - product image 4
Eaton CH CHF220 20A 2P 120/240V Thermal-Magnetic Circuit Breaker - product image 5
Eaton CH CHF220 20A 2P 120/240V Thermal-Magnetic Circuit Breaker - product image 6
Eaton CH CHF220 20A 2P 120/240V Thermal-Magnetic Circuit Breaker - product image 7

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton CH CHF220 20A 2P 120/240V Thermal-Magnetic Circuit Breaker

Out of stock
SKU: CHF220 NEW
(0)
$14.95
-32% $22.00 $14.95
Condition
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa

Overview

The Eaton CHF220 is a 20 Amp, two-pole Type CHF thermal-magnetic circuit breaker for Eaton CH load centers. It is rated 120/240V with a 10 kAIC interrupt rating, common trip, and a trip flag for visible status indication.

Key Features

  • Protection: 20A thermal-magnetic elements provide overload and short-circuit protection with common opening of both poles.
  • Installation: 3/4-inch plug-on breaker requiring two 3/4-inch spaces in compatible CH load centers.
  • Wire range: One conductor per lug accepts #14-8 AWG Cu/Al; two copper conductors may be #14-10 AWG.
  • Compliance: UL 489 listed and HACR rated for residential and light-commercial panel work.

Specifications

  • Model: CHF220
  • Rating: 20A, 2-pole, 120/240V AC
  • Interrupt rating: 10 kAIC
  • Trip: Common, with trip indication
  • Mounting: Type CHF 3/4-inch plug-on
  • Wire range: #14-8 AWG Cu/Al (one); #14-10 AWG Cu (two)

Common Applications

  • 120/240V branch circuits in Eaton CH residential panels
  • Small HVAC, appliance, and workshop circuits requiring a 20A two-pole breaker
  • Panel renovations and replacement of existing CHF220 breakers
  • Light-commercial CH load-center branch-circuit protection

Free shipping on eligible orders over $90. Our shipping cutoff is 3 PM, Monday–Friday. Available shipping services and delivery estimates are shown at checkout.

See our shipping policy for eligibility and exclusions. Orders are delivered; our warehouse is closed to the public.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.

Product Specifications

  • Brand Eaton
  • Series CHF
  • Model CHF220
  • Breaker Type Thermal Magnetic and Regular Breaker
  • Frame Type NA
  • Phase 1 Phase
  • Pole 2 Pole
  • Voltage 120/240V
  • Amp 20
  • AIC Interrupting Rating 10 kA
  • Terminal Connection Box Lugs
  • Minimum Wire Gauge 14 AWG
  • Maximum Wire Gauge 8 AWG
  • Mounting Type Plug-ON,IN
  • Temperature Rating 104°F (40°C)
  • Certifications UL Listed and HACR Rated
