Overview

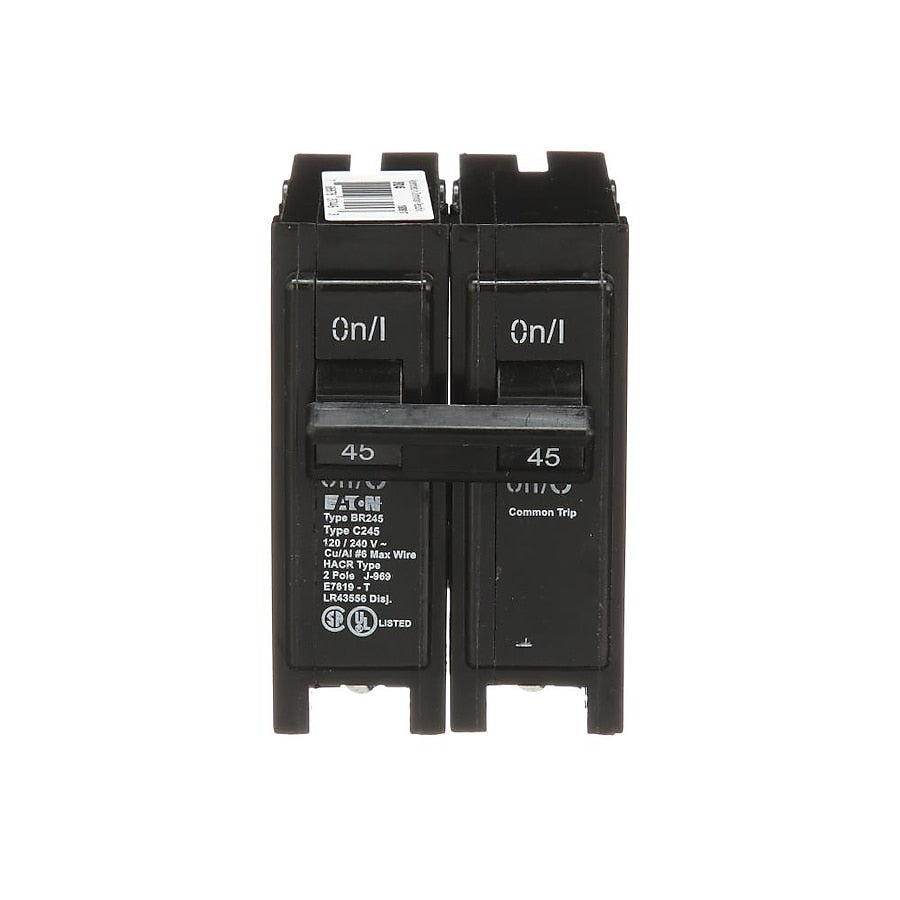

The Eaton BR245 is a 45 Amp, two-pole Type BR thermal-magnetic circuit breaker for compatible Eaton Type BR load centers. It uses a 1-inch plug-on design, is rated 120/240 VAC, and provides a 10 kA interrupting rating for dependable residential and light-commercial branch-circuit protection.
Key Features
-
Protection: Thermal-magnetic operation with common trip disconnects both poles together during an overcurrent event.
-
Installation: Plug-on mounting provides a secure fit in compatible Type BR load centers.
-
Compatibility: Accepts #14-4 AWG copper or aluminum conductors and is intended for Type BR load centers.
-
Certification: UL 489 certified and compliant with Federal Specification W-C375.
Specifications
- Model: BR245
- Current rating: 45 A
- Poles: 2
- Voltage: 120/240 VAC
- Interrupt rating: 10 kAIC
- Mounting: Plug-on
- Wire range: #14-4 AWG Cu/Al
- Trip: Common breaker trip
- Dimensions: 1.9 in deep × 2.5 in high × 2.9 in wide
- Weight: 0.6 lb
Common Applications
- Two-pole residential branch circuits in compatible Eaton Type BR load centers.
- Heating, air-conditioning, water-heating, and other 120/240 V loads requiring 45 A protection, when permitted by the equipment manufacturer and applicable electrical code.
- Replacement or expansion of compatible Type BR panel installations.
